MC74LCX138
-
Suppliers
DataSheet
General Description
MC74LCX138 Maximum Ratings
|
Symbol |
Parameter |
Value |
Condition |
Unit |
| VCC | DC Supply Voltage |
0.5 to +7.0 |
V | |
| VI | DC Input Voltage |
0.5 VI +7.0 |
V | |
| VO | DC Output Voltage |
0.5 VO VCC + 0.5 |
Note 1. |
V |
| IIK | DC Input Diode Current |
-50 |
VI < GND |
mA |
| IOK | DC Output Diode Current |
-50 |
VO < GND |
mA |
|
+50 |
VO > VCC |
mA | ||
| IO | DC Output Source/Sink Current |
±50 |
mA | |
| ICC | DC Supply Current Per Supply Pin |
±100 |
mA | |
| IGND | DC Ground Current Per Ground Pin |
±100 |
mA | |
| TSTG | Storage Temperature Range |
65 to +150 |
°C |

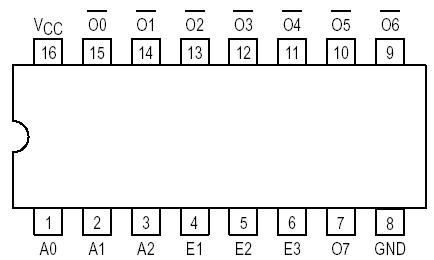

MC74LCX138 Connection Diagram
MC74LCX138
PDF/DataSheet Download
- Datasheet: MC74LCX138
- File Size: 116129 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
