MFG:ON Package Cooled:SOP20 D/C:06+
MFG: ON
Package Cooled: SOP20
D/C: 06+
Description: The MC74LCX244 is a high performance, noninverting octal buffer operating from a 2.7 to 3.6V supply. H...
The MC74LCX244 is a high performance, noninverting octal buffer operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX244 inputs to be safely driven from 5V devices. The MC74LCX244 is suitable for memory address driving and all TTL level bus oriented transceiver applications.
Current drive capability is 24mA at the outputs. The Output Enable (OE) input, when HIGH, disables the output by placing them in a HIGH Z condition.

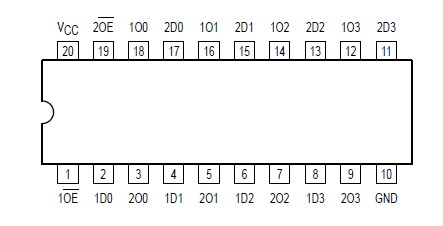

| Symbol | Parameter | Value | Condition | Unit |
| VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
| VI | DC Input Voltage | 0.5 3VI 7.0 | V | |
| VO | DC Output Voltage | 0.5 3 VO 7.0 | Output in 3State | V |
| 0.5 3 VO 3 VCC + 0.5 | Note 1. | V | ||
| IIK | DC Input Diode Current | 50 | VI < GND | mA |
| IOK | DC Output Diode Current | 50 | VO < GND | mA |
| +50 | VO > VCC | mA | ||
| IO | DC Output Source/Sink Current | +50 | mA | |
| ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
| IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
| TSTG | Storage Temperature Range | 65 to +150 | °C |
MC74LCX244
