Part Number: MC74LCX32
Description: The MC74LCX32 is a high performance, quad 2input OR gate operating from a 2.7 to 3.6V supply. High imp...
- Table of contents:
MC74LCX32
-
Suppliers
DataSheet
General Description
MC74LCX32 General Description
The MC74LCX32 is a high performance, quad 2input OR gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX32 inputs to be safely driven from 5V devices.
Current drive capability is 24mA at the outputs.
MC74LCX32 Maximum Ratings
| Symbol | Parameter | Value | Condition | Unit |
| VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
| VI | DC Input Voltage | 0.5 VI +7.0 | V | |
| VO | DC Output Voltage | 0.5 VO VCC + 0.5 | Note 1. | V |
| IIK | DC Input Diode Current | 50 | VI < GND | mA |
| IOK | DC Output Diode Current | 50 | VO < GND | mA |
| +50 | VO > VCC | mA | ||
| IO | DC Output Source/Sink Current | +50 | mA | |
| ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
| IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
| TSTG | Storage Temperature Range | 65 to +150 | °C |
* Absolute maximum continuous ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied.
1. Output in HIGH or LOW State. IO absolute maximum rating must be observed.
MC74LCX32 Features
• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

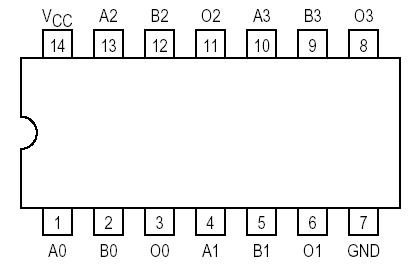

MC74LCX32 Connection Diagram
MC74LCX32
