General Description
MC74LCX38 General Description
The MC74LCX38 is a high performance, open drain quad 2input NAND gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers. A VI specification of 5.5V allows MC74LCX38 inputs to be safely driven from 5V devices.
The open drain output with a 5V pullup resistor can be utilized to drive 5V CMOS inputs. Current drive capability is 24mA at the outputs.
MC74LCX38 Features
• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Output Sink Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Output Sink Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

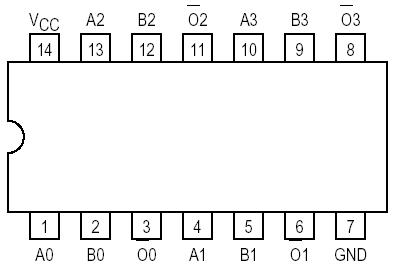

MC74LCX38 Connection Diagram
MC74LCX38
PDF/DataSheet Download
- Datasheet: MC74LCX38
- File Size: 120032 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
