Part Number: MC74LCX74



MFG: MOT

Package Cooled: SSOP14

D/C: 00+



Urgent Purchase

MC74LCX74 Maximum Ratings

Symbol
Parameter
Value
Condition
Unit
VCC DC Supply Voltage
0.5 to +7.0

V
VI DC Input Voltage
0.5  VI  +7.0

V
VO DC Output Voltage
0.5  VO  VCC + 0.5
Note 1.
V
IIK DC Input Diode Current
-50
VI < GND
mA
IOK DC Output Diode Current
-50
VO < GND
mA
+50
VO > VCC
mA
IO DC Output Source/Sink Current
±50

mA
ICC DC Supply Current Per Supply Pin
±100

mA
IGND DC Ground Current Per Ground Pin
±100

mA
TSTG Storage Temperature Range
65 to +150

°C

MC74LCX74 Features

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10A) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V

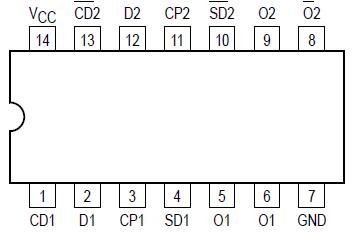

MC74LCX74 Connection Diagram

MC74LCX74 Connection Diagram

MC74LCX74 datasheet

MC74LCX74
PDF/DataSheet Download

Find MC74LCX74 Suppliers
