General Description
MC74LCX86 General Description
The MC74LCX86 is a high performance, quad 2input XOR gate operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer mproved switching noise performance. A VI specification of 5.5V allows MC74LCX86 inputs to be safely driven from 5V devices.
MC74LCX86 Maximum Ratings
| Symbol | Parameter | Value | Condition | Unit |
| VCC | DC Supply Voltage | 0.5 to +7.0 | V | |
| VI | DC Input Voltage | 0.5 VI 7.0 | V | |
| VO | DC Output Voltage | 0.5 VO VCC + 0.5 | Note 1. | V |
| IIK | DC Input Diode Current | 50 | VI < GND | mA |
| IOK | DC Output Diode Current | 50 | VO < GND | mA |
| +50 | VO > VCC | mA | ||
| IO | DC Output Source/Sink Current | +50 | mA | |
| ICC | DC Supply Current Per Supply Pin | ±100 | mA | |
| IGND | DC Ground Current Per Ground Pin | ±100 | mA | |
| TSTG | Storage Temperature Range | 65 to +150 | °C |

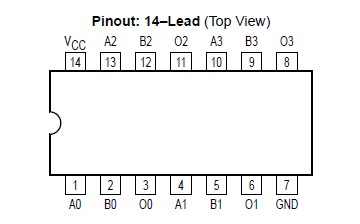

MC74LCX86 Connection Diagram
