General Description
MC74LVX4052 General Description
The MC74LVX4052 utilizes silicongate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range (from VCC to VEE).
The LVX4052 is similar in pinout to the highspeed HC4052A and the metalgate MC14052B. The ChannelSelect inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The ChannelSelect and Enable inputs are compatible with standard CMOS outputs; with pullup resistors, they are compatible with LSTTL outputs.
This device has been designed so the ON resistance (RON) is more linear over input voltage than the RON of metalgate CMOS analog switches and HighSpeed CMOS analog switches.
MC74LVX4052 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VEE | Negative DC Supply Voltage (Referenced to GND) | -7.0 to +0.5 | V |
| VCC | Positive DC Supply Voltage (Referenced to GND) (Referenced to VEE) |
-0.5 to +7.0 -0.5 to +7.0 |
V |
| VIS | Analog input Voltage | VEE-0.5 to VCC + 0.5 | V |
| VIN | ÎDigÎital IÎnputÎ VoltÎage(Referenced to GND) | -0.5 to 7.0 | V |
| I | DC Current,into or Out of any pin | ± 20 | mA |
| TSTG | Storage Temperature Range | -65 to +150 | °C |
| TL | Lead Temperature,1mm from case for 10 seconds | 260 | °C |
| TJ | Junction Temperature under Bias | +150 | °C |
| JA |
Themal Rasistance SOIC |
143 164 |
°C/W |
| PD | Power Dissipation in Still Air SOIC TSSOP |
500 450 |
mW |
| MSL | Moisture Sensitivity | Lever1 | |
| FR | Flammability RaÎting Oxygen Index: 30% 3Î5% | UL-94-VO(0.125 in) | |
| VESD |
ÎESD Withstand Voltage Human Body Model (Note 2) |
>2000 >200 >1000 |
V |
| ILATCH-UP | LatchUp Performance Above VCC and Below GND at 125°C (Note 5) | ±300 | mA |
3. Tested to EIA/JESD22A115A.
4. Tested to JESD22C101A.
5. Tested to EIA/JESD78.
MC74LVX4052 Features
• Fast Switching and Propagation Speeds
• Low Crosstalk Between Switches
• Analog Power Supply Range (VCC VEE) = 3.0 V to 3.0 V
• Digital (Control) Power Supply Range (VCC GND) = 2.5 to 6.0 V
• Improved Linearity and Lower ON Resistance Than MetalGate, HSL, or VHC Counterparts
• Low Noise
• Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to 3.0 V
• BreakBeforeMake Circuitry
• Low Crosstalk Between Switches
• Analog Power Supply Range (VCC VEE) = 3.0 V to 3.0 V
• Digital (Control) Power Supply Range (VCC GND) = 2.5 to 6.0 V
• Improved Linearity and Lower ON Resistance Than MetalGate, HSL, or VHC Counterparts
• Low Noise
• Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to 3.0 V
• BreakBeforeMake Circuitry

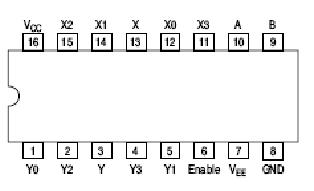

MC74LVX4052 Connection Diagram
MC74LVX4052
PDF/DataSheet Download
- Datasheet: MC74LVX4052
- File Size: 155699 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
