MC74LVX573
-
Suppliers
DataSheet
General Description
MC74LVX573 General Description
The MC74LVX573 is an advanced high speed CMOS octal latch with 3state outputs. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.
This 8bit Dtype latch is controlled by a latch enable input and an output enable input. When the output enable input is high, the eight outputs are in a high impedance state.
MC74LVX573 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| VCC | Supply Voltage | -0.5 to +7.0 | V |
| VIN | DC Input Voltage | -0.5 to +7.0 | V |
| VOUT | DC Output Voltage | -0.5 to VCC + 0.5 | V |
| IIK | DC Input Diode Current | -20 | mA |
| IOK | DC Output Diode Current | ± 20 | mA |
| IOUT | DC Output Current per Pin | ± 25 | mA |
| ICC | DC Supply Current, VCC and GND Pins | ±75 | mA |
| PD | Power Dissipation | 180 | mW |
| TSTG | Storage Temperature | -65 to +150 | °C |
MC74LVX573 Features
• High Speed: tPD = 6.4ns (Typ) at VCC = 3.3V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V

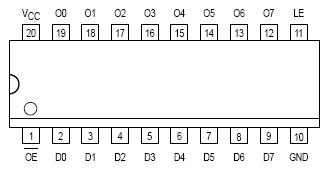

MC74LVX573 Connection Diagram
MC74LVX573
PDF/DataSheet Download
- Datasheet: MC74LVX573
- File Size: 112536 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
