MC74VHC126
-
Suppliers
DataSheet
General Description

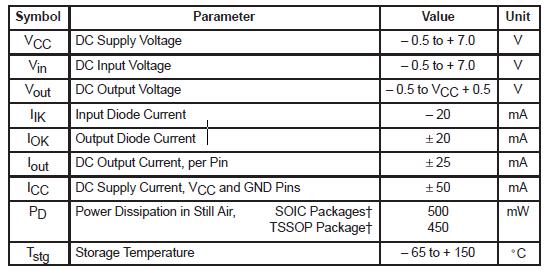

MC74VHC126 Maximum Ratings
* Absolute maximum continuous ratings are those values beyond which damage to the device
may occur. Exposure to these conditions or conditions beyond those indicated may
adversely affect device reliability. Functional operation under absolutemaximumrated
conditions is not implied.
†Derating - SOIC Packages: 7 mW/°C from 65° to 125°C
TSSOP Package: 6.1 mW/°C from 65° to 125°C
MC74VHC126 Features
• High Speed: tPD = 3.8ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• High Noise Immunity: VNIH = VNIL = 28% VCC
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 72 FETs or 18 Equivalent Gates
• Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C
• High Noise Immunity: VNIH = VNIL = 28% VCC
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: VOLP = 0.8V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 72 FETs or 18 Equivalent Gates
MC74VHC126 Connection Diagram
MC74VHC126
PDF/DataSheet Download
- Datasheet: MC74VHC126
- File Size: 167574 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
