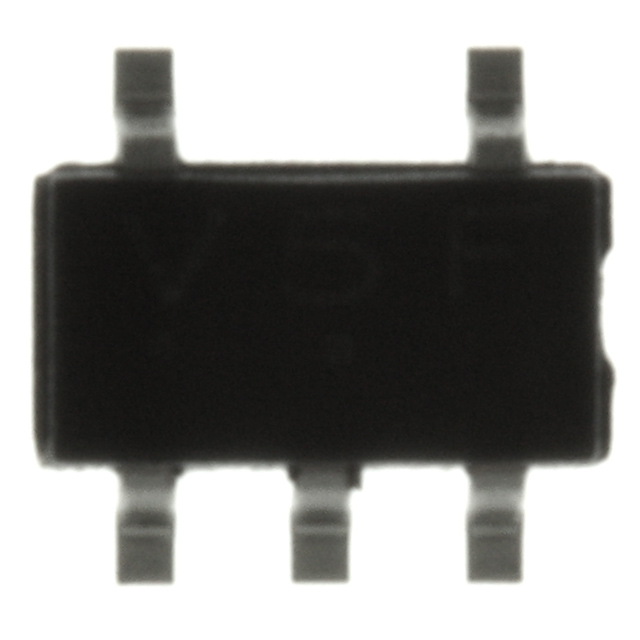

MC74VHC1G05 Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74VHC1G05









Description: The MC74VHC1G05 is an advanced high speed CMOS inverter with open drain output fabricated with silicon gate CMOS techno...


Urgent Purchase

MC74VHC1G05 General Description


The MC74VHC1G05 is an advanced high speed CMOS inverter with open drain output fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The internal circuit is composed of three stages, including an open drain output which provides the capability to set output switching level. This allows the MC74VHC1G05 to be used to interface 5 V circuits to circuits of any voltage between V CC and 7 V using an external  resistor and power supply.

The MC74VHC1G05 input structure provides protection when voltages up to 7 V are applied, regardless of the supply voltage.

MC74VHC1G05 Maximum Ratings

Symbol Parameter Value Unit
VCC DC Supply Voltage 0.5 to + 7.0 V
VIN DC Input Voltage 0.5 to 7.0 V
VOUT DC Output Voltage 0.5 to 7.0 V
IIK Input Diode Current 20 mA
IOK Output Diode Current VOUT < GND;VOUT > VCC +20 mA
IOUT DC Output Current, per Pin + 25 mA
ICC DC Supply Current, VCC and GND +50 mA
PD Power dissipation in still air SC88A, TSOP5 200 mW
JA Thermal resistance SC88A, TSOP5 333 °C/W
TL Lead Temperature, 1 mm from Case for 10 s 260 °C
TJ Junction Temperature Under Bias + 150 °C
Tstg Storage temperature 65 to +150 °C
VESD ESD Withstand Voltage Human Body Model (Note 2)
Machine Model (Note 3)
Charged Device Model (Note 4) 		>2000
> 200
N/A		 V
ILATCHUP LatchUp Performance Above VCC and Below GND at 125°C (Note 5) ± 500 mA
1. Maximum Ratings are those values beyond which damage to the device may occur. Exposure to these conditions or conditions beyond those indicated may adversely affect device reliability. Functional operation under absolutemaximumrated conditions is not implied. Functional operation should be restricted to the Recommended Operating Conditions.
2. Tested to EIA/JESD22A114A
3. Tested to EIA/JESD22A115A
4. Tested to JESD22C101A
5. Tested to EIA/JESD78

MC74VHC1G05 Features

• High Speed: t PD = 3.8 ns (Typ) at V CC = 5 V
• Low Internal Power Dissipation: I CC = 2 mA (Max) at T A = 25°C
• Power Down Protection Provided on Inputs
• Pin and Function Compatible with Other Standard Logic Families
• Chip Complexity: FET = 105; Equivalent Gate = 26

MC74VHC1G05 Connection Diagram

MC74VHC1G05 Connection Diagram
