MFG:ON Package Cooled:SC?88A, SOT?353, SC?70 5 LEAD D/C:07+
MFG: ON
Package Cooled: SC?88A, SOT?353, SC?70 5 LEAD
D/C: 07+
Description: The MC74VHC1G14 is a single gate CMOS Schmitttrigger inverter fabricated with silicon gate CMOS techno...
The MC74VHC1G14 is a single gate CMOS Schmitttrigger inverter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.
The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The MC74VHC1G14 input structure provides protection when voltages up to 7V are applied, regardless of the supply voltage. This allows the MC74VHC1G14 to be used to interface 5V circuits to 3V circuits.
The MC74VHC1G14 can be used to enhance noise immunity or to square up slowly changing waveforms.

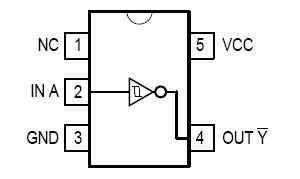

| Characteristics | Symbol | Value | Unit |
| DC Supply Voltage | VCC | 0.5 to +7.0 | V |
| DC Input Voltage | VIN | 0.5 to +7.0 | V |
| DC Output VoltageVCC = 0 High or Low State |
VOUT | 0.5 to +7.0 0.5 to VCC + 0.5 |
V |
| Input Diode Current | IIK | ±20 | mA |
| Output Diode Current (VOUT < GND; VOUT > VCC) | IOK | ±20 | mA |
| DC Output Current, per Pin | IOUT | ±25 | mA |
| DC Supply Current, VCC and GND | ICC | ±25 | mA |
| Power dissipation in still air SC88A? TSOP5? |
PD | 200 |
mW |
| Lead temperature, 1 mm from case for 10 s | TL | 260 | °C |
| Storage temperature | Tstg | 65 to +150 | °C |
MC74VHC1G14DFT1
PDF/DataSheet Download
The MC74VHC1G14 is a single gate CMOS Schmitttrigger inverter fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.The internal circuit is compo...
