Purchase MC74VHC1G14DTT1G, In-stock MC74VHC1G14DTT1G From SeekIC.

MFG:ON Semiconductor (VA)  Category:Integrated Circuits (ICs)

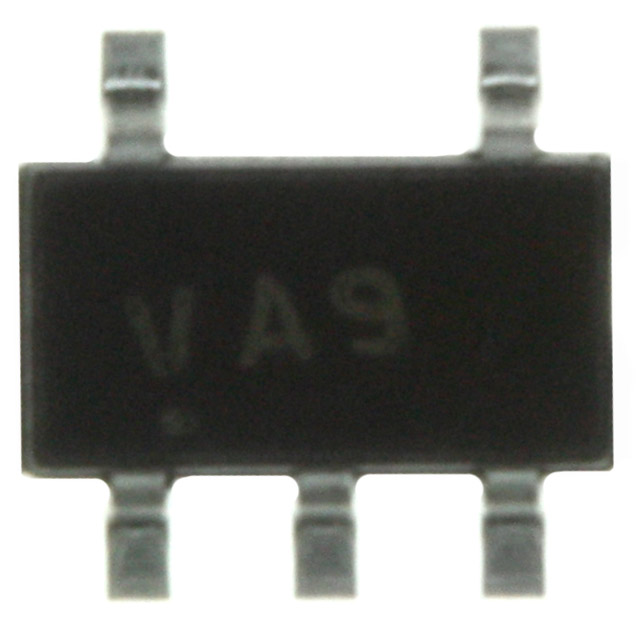

MC74VHC1G14DTT1G Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74VHC1G14DTT1G

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor (VA)





Descriptions: IC INVERTER SGL SCHMITT SOT23-5

Price Break

1
25
100
250
500
1000

Unit Price

.39000
.21760
.16480
.11664
.09952
.07775

Extended Price

0.39
5.44
16.48
29.16
49.76
77.75

(All prices are in USD) Prices for reference only
Urgent Purchase

MC74VHC1G14DTT1G General Description

IC INVERTER SGL SCHMITT SOT23-5

MC74VHC1G14DTT1G Parameters

Technical/Catalog InformationMC74VHC1G14DTT1G
VendorON Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSOT-23-5
Logic TypeInverter with Schmitt Trigger
PackagingDigi-Reel?
Mounting TypeSurface Mount
Number of Inputs1
Current - Output High, Low8mA, 8mA
Supply Voltage2 V ~ 5.5 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply2 V ~ 5.5 V
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MC74VHC1G14DTT1G
MC74VHC1G14DTT1G
MC74VHC1G14DTT1GOSDKR ND
MC74VHC1G14DTT1GOSDKRND
MC74VHC1G14DTT1GOSDKR
