Purchase MC74VHC1G66DFT1, In-stock MC74VHC1G66DFT1 From SeekIC.
MFG:ON D/C:06+
Part Number: MC74VHC1G66DFT1
MFG: ON
D/C: 06+
Description: The MC74VHC1G66 is an advanced high speed CMOS bilateral analog switch fabricated with silicon gate CM...
- Table of contents:
MC74VHC1G66DFT1
-
Suppliers
DataSheet
General Description
MC74VHC1G66DFT1 General Description
The MC74VHC1G66 is an advanced high speed CMOS bilateral analog switch fabricated with silicon gate CMOS technology. It achieves high speed propagation delays and low ON resistances whilemaintaining CMOS low power dissipation. This bilateral switch controls analog and digital voltages that may vary across the full powersupply range (from VCC to GND).
The MC74VHC1G66 is compatible in function to a single gate of the High Speed CMOS MC74VHC4066 and the metalgate CMOS MC14066. The device has been designed so that the ON resistances (RON) are much lower and more linear over input voltage than RON of the metalgate CMOS or High Speed CMOS analog switches.
The ON/OFF control inputs are compatible with standard CMOS outputs; with pullup resistors, it is compatible with LSTTL outputs
MC74VHC1G66DFT1 Maximum Ratings
| Characteristics | Symbol | Value | Unit |
| DC Supply Voltage | VCC | 0.5 to +7.0 | V |
| DC Input Voltage | VIN | 0.5 tovcc +0.5 | V |
| DC Output Voltage | Vis | 0.5 to VCC + 0.5 |
V |
| Input Diode Current | IIK | ±20 | mA |
| DC Supply Current, VCC and GND | ICC | ±25 | mA |
| Power dissipation in still air SC88A? TSOP5? |
PD | 200 |
mW |
| Lead temperature, 1 mm from case for 10 s | TL | 260 | °C |
| Storage temperature | Tstg | 65 to +150 | °C |
MC74VHC1G66DFT1 Features
• High Speed: tPD = TBD (Typ) at VCC = 5 V
• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C
• Diode Protection Provided on Inputs and Outputs
• Improved Linearity and Lower ON Resistance over Input Voltage
than the MC14066 or the HC4066
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300 mA
• ESD Performance: HBM > 2000 V; MM > 200 V, CDM > 1500 V
• Chip Complexity: 11 FETs or 3 Equivalent Gates
• Low Power Dissipation: ICC = 2 A (Max) at TA = 25°C
• Diode Protection Provided on Inputs and Outputs
• Improved Linearity and Lower ON Resistance over Input Voltage
than the MC14066 or the HC4066
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300 mA
• ESD Performance: HBM > 2000 V; MM > 200 V, CDM > 1500 V
• Chip Complexity: 11 FETs or 3 Equivalent Gates

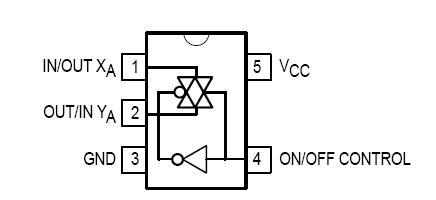

MC74VHC1G66DFT1 Connection Diagram
MC74VHC1G66DFT1
PDF/DataSheet Download
- Datasheet: MC74VHC1G66DFT1
- File Size: 338113 KB
- Manufacturer: LRC [Leshan Radio Company]
- Click here to Download
