Position: Home > Datasheet list > MC7 Series > Index M > MC74VHC1GT86DTT1
Electronica China

Purchase MC74VHC1GT86DTT1, In-stock MC74VHC1GT86DTT1 From SeekIC.

MFG:ON Semiconductor  Category:Integrated Circuits (ICs)

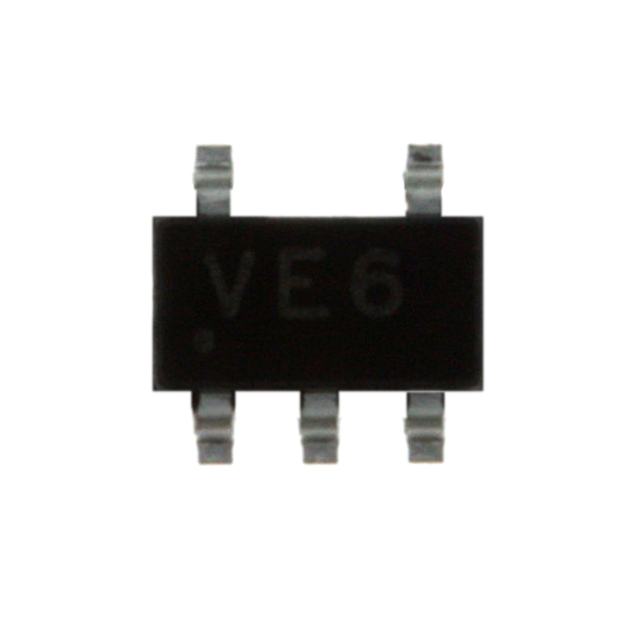

MC74VHC1GT86DTT1 Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC74VHC1GT86DTT1

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor





Descriptions: IC GATE OR EXCL 2IN CMOS SOT23-5

Urgent Purchase

MC74VHC1GT86DTT1 General Description

IC GATE OR EXCL 2IN CMOS SOT23-5

MC74VHC1GT86DTT1 Parameters

Technical/Catalog InformationMC74VHC1GT86DTT1
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSOT-23-5
Logic TypeXOR (Exclusive OR)
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low8mA, 8mA
Supply Voltage3 V ~ 5.5 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply3 V ~ 5.5 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC74VHC1GT86DTT1
MC74VHC1GT86DTT1
MC74VHC1GT86DTTOS ND
MC74VHC1GT86DTTOSND
MC74VHC1GT86DTTOS

MC74VHC1GT86DTT1 datasheet

MC74VHC1GT86DTT1
PDF/DataSheet Download

  • Datasheet: MC74VHC1GT86DTT1
  • File Size: 208923 KB
  • Manufacturer: LRC [Leshan Radio Company]
  • Click here to Download
