MC74VHC244
-
Suppliers
DataSheet
General Description
MC74VHC244 Maximum Ratings
|
Symbol |
Parameter |
Value |
Unit |
|
VCC |
DC Supply Voltage |
0.5 to +7.0 |
V |
|
Vin |
DC Input Voltage |
0.5 to + 7.0 |
V |
|
Vout |
DC Output Voltage |
0.5 to VCC + 0.5 |
V |
|
IIK |
Input Diode Current |
-20
|
mA
|
|
IOK |
Output Diode Current |
±20 |
mA |
|
Iout |
DC Output Current, per Pin |
±25 |
mA |
|
ICC |
DC Supply Current, VCC and GND Pins |
±50 |
mA |
|
PD |
Power Dissipation in Still Air, SOIC Packages TSSOP Package |
500 450 |
mW |
|
Tstg |
Storage Temperature |
65 to +150 |
°C |
MC74VHC244 Features
• High Speed: tPD = 3.9ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 4A (Max) at TA = 25°C
• High Noise Immunity: VNIH = VNIL = 28% VCC
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: VOLP = 0.9V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 136 FETs or 34 Equivalent Gates
• Low Power Dissipation: ICC = 4A (Max) at TA = 25°C
• High Noise Immunity: VNIH = VNIL = 28% VCC
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Designed for 2V to 5.5V Operating Range
• Low Noise: VOLP = 0.9V (Max)
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; Machine Model > 200V
• Chip Complexity: 136 FETs or 34 Equivalent Gates

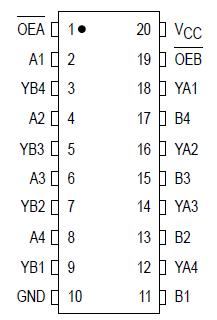

MC74VHC244 Connection Diagram
MC74VHC244
PDF/DataSheet Download
- Datasheet: MC74VHC244
- File Size: 168998 KB
- Manufacturer: ONSEMI [ON Semiconductor]
- Click here to Download
