Part Number: MC75174BDW
D/C: 09+
Description: The Motorola MC75172B/174B Quad Line drivers are differential high speed drivers designed to comply with the EIA485 Standard. Featu...
- Table of contents:
MC75174BDW
-
Suppliers
DataSheet
General Description
MC75174BDW General Description
The Motorola MC75172B/174B Quad Line drivers are differential high speed drivers designed to comply with the EIA485 Standard. Featuresinclude threestate outputs, thermal shutdown, and output current limiting in both directions. These devices also comply with EIA422A, and CCITT Recommendations V.11 and X.27.
The MC75172B/174B are optimized for balanced multipoint bus transmission at rates in excess of 10 MBPS. The outputs feature wide common mode voltage range, making them suitable for party line applications in noisy environments. The current limit and thermal shutdown features protect the devices from line fault conditions. These devices offer optimum performance when used with the MC75173 and MC75175 line receivers.
Both devices are available in 16pin plastic DIP and 20pin wide body surface mount packages.
MC75174BDW Maximum Ratings
| Rating | Symbol | Value | Unit |
| Power Supply Voltage | VCC | 0.5, +7.0 | Vdc |
| Input Voltage (Data, Enable) | Vin | +7.0 | Vdc |
| Input Current (Data, Enable) | Iin | 24 | mA |
| Applied Output Voltage, when in 3State Condition (VCC = 5.0 V) Applied Output Voltage, when VCC = 0 V |
Vza Vzb |
10, +14 ±14 |
Vdc |
| Output Current | IO | SelfLimiting | |
| Storage Temperature | Tstg | 65, +150 | °C |
MC75174BDW Features
• Meets EIA485 Standard for Party Line Operation
• Meets EIA422A and CCITT Recommendations V.11 and X.27
• Operating Ambient Temperature: 40°C to +85°C
• High Impedance Outputs
• Common Mode Output Voltage Range: 7 to 12 V
• Positive and Negative Current Limiting
• Transmission Rates in Excess of 10 MBPS
• Thermal Shutdown at 150°C Junction Temperature, (±20°C)
• Single 5.0 V Supply
• Pin Compatible with TI SN75172/4 and NS mA96172/4
• Interchangeable with MC3487 and AM26LS31 for EIA422A Applications
• Meets EIA422A and CCITT Recommendations V.11 and X.27
• Operating Ambient Temperature: 40°C to +85°C
• High Impedance Outputs
• Common Mode Output Voltage Range: 7 to 12 V
• Positive and Negative Current Limiting
• Transmission Rates in Excess of 10 MBPS
• Thermal Shutdown at 150°C Junction Temperature, (±20°C)
• Single 5.0 V Supply
• Pin Compatible with TI SN75172/4 and NS mA96172/4
• Interchangeable with MC3487 and AM26LS31 for EIA422A Applications

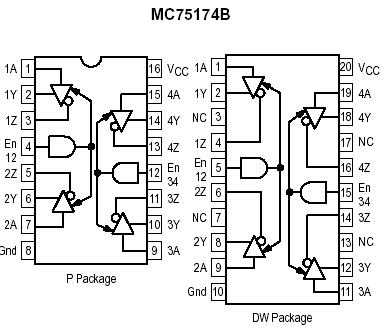

MC75174BDW Connection Diagram
