Purchase MC7805ACD2TR4, In-stock MC7805ACD2TR4 From SeekIC.

MFG:ON Semiconductor (VA)  Category:Integrated Circuits (ICs)

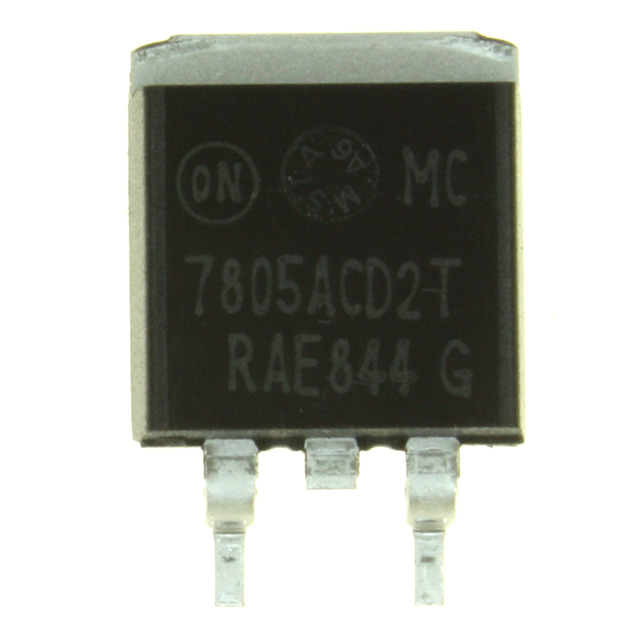

MC7805ACD2TR4 Product Image

MC7 Series Datasheet download

Five Points

Part Number: MC7805ACD2TR4

Category: Integrated Circuits (ICs)

MFG: ON Semiconductor (VA)





Descriptions: IC REG VOLT POS 1A 5V D2PAK-3

Price Break

1
25
100
250

Unit Price

.98000
.84640
.65100
.54684

Extended Price

0.98
21.16
65.10
136.71

(All prices are in USD) Prices for reference only
Urgent Purchase

MC7805ACD2TR4 General Description

IC REG VOLT POS 1A 5V D2PAK-3

MC7805ACD2TR4 Parameters

Technical/Catalog InformationMC7805ACD2TR4
VendorON Semiconductor (VA)
CategoryIntegrated Circuits (ICs)
Regulator TypeSingle Output
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
PackagingCut Tape (CT)
Regulator TopologyPositive Fixed
Current - Output1A
Voltage - Output5V
Operating Temperature0°C ~ 125°C
Voltage - Input7 ~ 25 V
Number of Regulators1
Current - Limit (Min)2.2A
Current Short Circuit (Isc)200mA
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC7805ACD2TR4
MC7805ACD2TR4
MC7805ACD2TR4OSCT ND
MC7805ACD2TR4OSCTND
MC7805ACD2TR4OSCT

MC7805ACD2TR4 datasheet

MC7805ACD2TR4
PDF/DataSheet Download

Find MC7805ACD2TR4 Suppliers
