MFG:Freescale Semiconductor Category:Integrated Circuits (ICs)
Category: Integrated Circuits (ICs)
MFG: Freescale Semiconductor
Descriptions: IC MCU I.MX 200MHZ 256-MAPBGA
| Technical/Catalog Information | MC9328MX1VH20 |
| Vendor | Freescale Semiconductor |
| Category | Integrated Circuits (ICs) |
| Program Memory Size | - |
| RAM Size | - |
| Number of I /O | 110 |
| Package / Case | 256-MAPBGA |
| Speed | 200MHz |
| Controller Series | i.MX1 |
| Oscillator Type | External |
| Packaging | Tray |
| Program Memory Type | ROMless |
| EEPROM Size | - |
| Core Processor | ARM9 |
| Data Converters | - |
| Core Size | 32-Bit |
| Operating Temperature | 0°C ~ 70°C |
| Connectivity | EBI/EMI, I²C, MMC, SmartCard, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, I²S, LCD, POR, PWM, WDT |
| Voltage - Supply (Vcc/Vdd) | 1.7 V ~ 1.9 V |
| Drawing Number | 375; 1386-01; ; 256 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | MC9328MX1VH20 MC9328MX1VH20 |

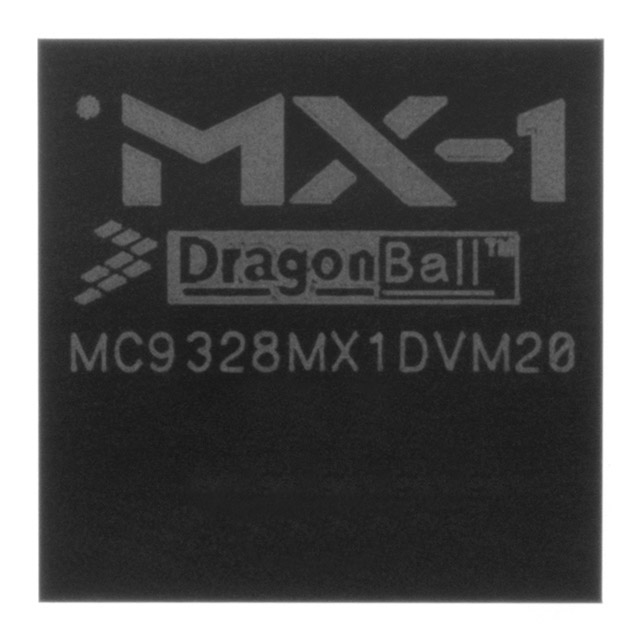

MC9328MX1VH20
PDF/DataSheet Download
IC MCU I.MX 200MHZ 256-MAPBGA
IC MCU I.MX 200MHZ 256-MAPBGA
The new MC9328MX1 features the advanced and powerefficient ARM920T™ core that operates at speeds up to 200 MHz. Integrated modules, which include an LCD controller, static RAM, USB support, an A/D converter (with touch panel control), and an MMC/SD hos...
