Part Number: MCD212











Urgent Purchase

MCD212 Maximum Ratings

Parameter
Symbol
Min
Max
Unit
Supply Voltage
VDD
0.5
+ 7.0
V
Input Voltage
VI
1.5
VDD + 1.5
V
Output Voltage
VO
0.5
VDD + 0.5
V
Output Current
IO
-
± 25
mA
Power Dissipation
PD
-
1200
mW
Operating Temperature
Topr
0
+ 70
°C
Storage Temperature
Tstg
65
+ 150
°C
Test Conditions: VSS = 0 V, TA = 70 °C.

MCD212 Features

System Interface:
• Direct Interface for 680X0 Bus Compatible Devices
• 1M Byte ROM Control
• 1K Byte I/O Control
• Reset Sequencer, Including ROM Shadowing
• Watchdog Timer
DRAM Interface:
• 4M Byte DRAM Direct Drive
• 256K x 4, 1M x 4, and 256K x 16 DRAM Types Can be Used
Video Interface:
• Up to 768 x 560 Screen Resolution
• Capability to Display Runlength Coded Files
• Mosaic Effect
• 256entry Color Look Up Table (CLUT)
• Two Delta YUV Decoders
• Cursor Shape, Color, and Blink Control
• Overlaying of Four Video Planes
• Special Effects via Weight Control, Priority Control, etc.
• Dynamic Programmable Registers and CLUT Reload in Retrace Period
• Digital RGB Output (8 Bits per Component)
• Synchro Generator for 50 and 60 Hz Scan
• Synchronization with External Video
General:
• CMOS Technology
• 160pin Quad Flat Pack Plastic Package

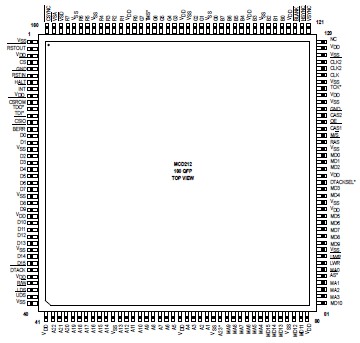

MCD212 Connection Diagram
