Position: Home > Datasheet list > MCF Series > Index M > MCF52236CAF50
Electronica China

Purchase MCF52236CAF50, In-stock MCF52236CAF50 From SeekIC.

MFG:Freescale Semiconductor  Category:Integrated Circuits (ICs)

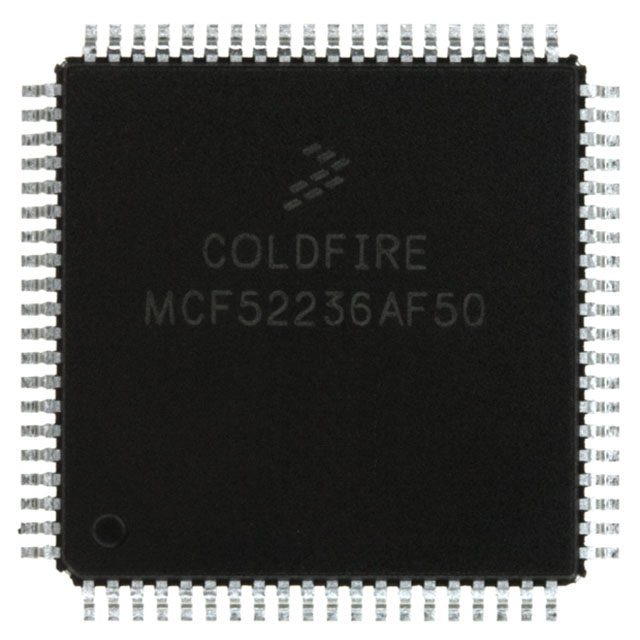

MCF52236CAF50

MCF Series Datasheet download

Five Points

Part Number: MCF52236CAF50

Category: Integrated Circuits (ICs)

MFG: Freescale Semiconductor





Descriptions: IC MCU 32BIT 256K FLASH 80-LQFP

Price Break

1
25
100
1000

Unit Price

9.53000
7.19760
6.80680
6.46560

Extended Price

9.53
179.94
680.68
6465.60

(All prices are in USD) Prices for reference only
Urgent Purchase

MCF52236CAF50 General Description

IC MCU 32BIT 256K FLASH 80-LQFP

MCF52236CAF50 Parameters

Technical/Catalog InformationMCF52236CAF50
VendorFreescale Semiconductor
CategoryIntegrated Circuits (ICs)
Program Memory Size256KB (256K x 8)
RAM Size32K x 8
Number of I /O56
Package / Case80-LQFP
Speed50MHz
Controller SeriesMCF5223x
Oscillator TypeInternal
PackagingTray
Program Memory TypeFLASH
EEPROM Size-
Core ProcessorColdfire V2
Data ConvertersA/D 8x12b
Core Size32-Bit
Operating Temperature-40°C ~ 85°C
ConnectivityEthernet, I²C, SPI, UART/USART
PeripheralsDMA, LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)3 V ~ 3.6 V
Drawing Number375; 917A-02; ; 80
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MCF52236CAF50
