MCF54455

Features: • Version 4 ColdFire® Core with MMU and EMAC• Up to 410 Dhrystone 2.1 MIPS @ 266 MHz• 16-kBytes instruction cache and 16-kBytes data cache• 32-kBytes internal SRAM• Support for booting from SPI-compatible flash, EEPROM, and FRAM devices• Crossbar s...

product image

MCF54455 Picture
See larger image
SeekIC No. : 004417542 Detail

MCF54455: Features: • Version 4 ColdFire® Core with MMU and EMAC• Up to 410 Dhrystone 2.1 MIPS @ 266 MHz• 16-kBytes instruction cache and 16-kBytes data cache• 32-kBytes internal S...

MCF54455 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MCF54455
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2026/4/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Version 4 ColdFire® Core with MMU and EMAC
• Up to 410 Dhrystone 2.1 MIPS @ 266 MHz
• 16-kBytes instruction cache and 16-kBytes data cache
• 32-kBytes internal SRAM
• Support for booting from SPI-compatible flash, EEPROM,
   and FRAM devices
• Crossbar switch technology (XBS) for concurrent access to
   peripherals or RAM from multiple bus masters
• 16-channel DMA controller
• 16-bit 133-MHz DDR/mobile-DDR/DDR2 controller
• USB 2.0 On-the-Go controller with ULPI support
• 32-bit PCI controller @ 66MHz
• ATA/ATAPI controller
• 2 10/100 Ethernet MACs
• Coprocessor for acceleration of the DES, 3DES, AES,
   MD5, and SHA-1 algorithms
• Random number generator
• Synchronous serial interface (SSI)
• 4 periodic interrupt timers (PIT)
• 4 32-bit timers with DMA support
• DMA-supported serial peripheral interface (DSPI)
• 3 UARTs
• I2C bus interface


Pinout

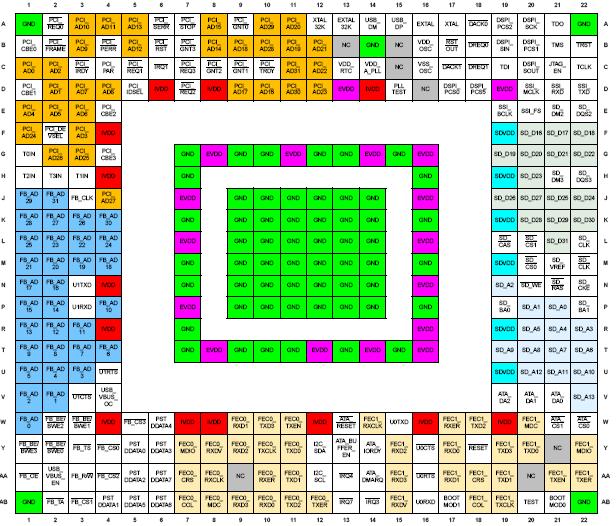

Connection Diagram


Specifications

Rating Symbol Pin Name Value Unit
External I/O pad supply voltage EVDD EVDD 0.3 to +4.0 V
Internal oscillator supply voltage OSCVDD VDD_OSC 0.3 to +4.0 V
Real-time clock supply voltage RTVDD VDD_RTC 0.3 to +4.0 V
Core Supply Voltage IVDD IVDD 0.5 to +2.0 V
Pad Supply Voltage SDVDD SD_VDD 0.3 to +4.0 V
Clock Synthesizer Supply Voltage PVDD VDD_A_PLL 0.3 to +4.0 V
Digital Input Voltage 3 VIN -- 0.3 to +4.0 V
Instantaneous Maximum Current
Single pin limit (applies to all pins) 3,4,5		 IDD -- 25 mA
Operating Temperature Range (Packaged) TA
(TL - TH		 -- 40 to 85 °C
Storage Temperature Range Tstg -- 65 to 150 °C
