The MCM6206BB is a 262,144 bit static random access memory organized as 32,768 words of 8 bits. Static design eliminates the need for external clocks or timing strobes, while CMOS circuitry reduces power consumption and provides for greater reliability.
This device meets JEDEC standards for functionality and pinout, and is available in plastic smalloutline Jleaded packages.
• Single 5 V ± 10% Power Supply
• Fully Static - No Clock or Timing Strobes Necessary
• Fast Access Times: 12/15/20/25 ns
• Equal Address and Chip Enable Access Times
• Output Enable (G) Feature for Increased System Flexibility and to Eliminate Bus Contention Problems
• Low Power Operation: 125 140 mA Maximum AC
• Fully TTL Compatible - Three State Output
MCM6206BB Maximum Ratings
|
Rating |
Symbol |
Value |
Unit |
|
Power Supply Voltage |
VCC |
0.5to+7.0 |
V |
|
Voltage Relative to VSS For Any Pin Except VCC |
Vin, Vout |
0.5 to VCC + 0.5 |
V |
|
Output Current |
Iout |
± 20 |
mA |
|
Power Dissipation |
PD |
1.0 |
W |
|
Temperature Under Bias |
Tbias |
10to+85 |
°C |
|
Ambient Temperature |
TA |
0to+70 |
°C |
|
Storage Temperature - Plastic |
Tstg |
55 to + 125 |
°C |

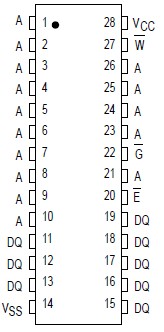

MCM6206BB Connection Diagram
MCM6206BB
PDF/DataSheet Download
- Datasheet: MCM6206BB
- File Size: 111158 KB
- Manufacturer: MOTOROLA [Motorola, Inc]
- Click here to Download
