Purchase MCP6001, In-stock MCP6001 From SeekIC.
D/C:07+ROHS
Part Number: MCP6001
D/C: 07+ROHS
Description: The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for gener...
- Table of contents:
MCP6001
-
Suppliers
DataSheet
General Description
MCP6001 General Description
The Microchip Technology Inc. MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general-purpose applications. This family has a 1 MHz gain bandwidth product and 90° phase margin (typ.). It also maintains 45° phase margin (typ.) with 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 A (typ.) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of operational amplifiers is designed with Microchip's advanced CMOS process.
The MCP6001/2/4 family is available in the industrial and extended temperature ranges. It also has a power supply range of 1.8V to 5.5V.
MCP6001 Maximum Ratings
VDD - VSS .........................................................................7.0V
All Inputs and Outputs ...................... VSS -0.3V to VDD +0.3V
Difference Input Voltage ....................................... |VDD - VSS|
Output Short Circuit Current .................................continuous
Current at Input Pins ...................................................±2 mA
Current at Output and Supply Pins ............................±30 mA
Storage Temperature ..................................-65°C to +150°C
Maximum Junction Temperature (TJ) ..........................+150°C
ESD Protection On All Pins (HBM;MM) ............... 4 kV; 200V
All Inputs and Outputs ...................... VSS -0.3V to VDD +0.3V
Difference Input Voltage ....................................... |VDD - VSS|
Output Short Circuit Current .................................continuous
Current at Input Pins ...................................................±2 mA
Current at Output and Supply Pins ............................±30 mA
Storage Temperature ..................................-65°C to +150°C
Maximum Junction Temperature (TJ) ..........................+150°C
ESD Protection On All Pins (HBM;MM) ............... 4 kV; 200V
MCP6001 Features
• Available in SC-70-5 and SOT-23-5 packages
• 1 MHz Gain Bandwidth Product (typ.)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 5.5V
• Supply Current: IQ = 100 A (typ.)
• 90° Phase Margin (typ.)
• Temperature Range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages
• 1 MHz Gain Bandwidth Product (typ.)
• Rail-to-Rail Input/Output
• Supply Voltage: 1.8V to 5.5V
• Supply Current: IQ = 100 A (typ.)
• 90° Phase Margin (typ.)
• Temperature Range:
- Industrial: -40°C to +85°C
- Extended: -40°C to +125°C
• Available in Single, Dual and Quad Packages
MCP6001 Typical Application
• Automotive
• Portable Equipment
• Photodiode Pre-amps
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems
• Portable Equipment
• Photodiode Pre-amps
• Analog Filters
• Notebooks and PDAs
• Battery-Powered Systems
MCP6001 Connection Diagram
MCP6001
PDF/DataSheet Download
- Datasheet: MCP6001
- File Size: 465827 KB
- Manufacturer: MICROCHIP
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP6001 Relative Products

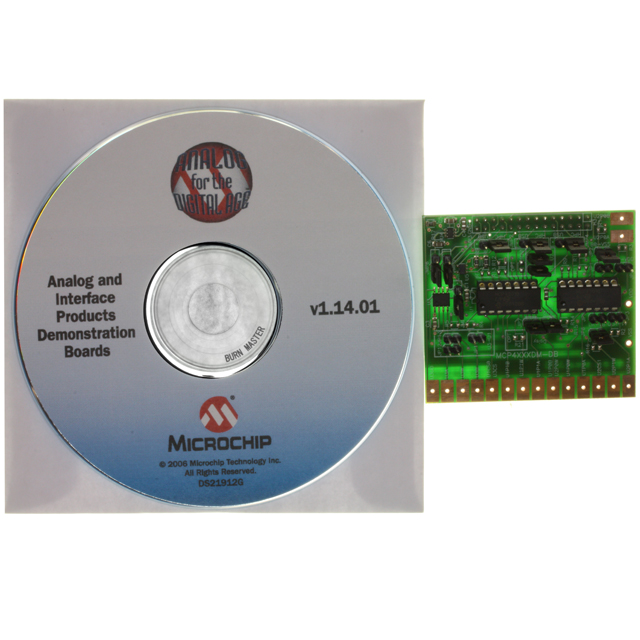

MCP4XXXDM-DB
