Purchase MCP810, In-stock MCP810 From SeekIC.
MFG:NS Package Cooled:SOT-23
Part Number: MCP810
MFG: NS
Package Cooled: SOT-23
Description: The MCP809/810 microprocessor supervisory circuits can be used to monitor the power supplies in microp...
- Table of contents:
MCP810
-
Suppliers
DataSheet
General Description
MCP810 General Description
The MCP809/810 microprocessor supervisory circuits can be used to monitor the power supplies in microprocessor and digital systems. They provide a reset to the microprocessor during power-up, power-down and brown-out conditions.
The function of the MCP809/810 is to monitor the VCC supply voltage, and assert a reset signal whenever this voltage declines below the factory-programmed reset threshold. The reset signal remains asserted for 240ms after VCC rises above the threshold. The MCP809 has an active-low RESET output, while the MCP810 has an active-high RESET output.
Seven standard reset voltage options are available, suitable for monitoring 5V, 3.3V, and 3V supply voltages.
With a low supply current of only 15A, the MCP809/810 are ideal for use in portable equipment. The MCP809/MCP810 are available in the 3-pin SOT23 package.
MCP810 Maximum Ratings
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
VCC −0.3V to 6.0V
RESET,RESET −0.3V to (VCC+ 0.3V)
Input Current, VCC Pin 20mA
Output Current, RESET, RESET
Pin 20mA
Rate of Rise, VCC 100V/s
ESD Rating (Note 2) 2kV
Continuous Power Dissipation (TA = +70°C)
SOT-23 (Note 3) 320mW
Ambient Temperature Range −40°C to +105°C
Maximum Junction Temperature 125°C
Storage Temperature Range −65°C to +160°C
Lead Temperature (soldering, 10sec) +300°C
VCC −0.3V to 6.0V
RESET,RESET −0.3V to (VCC+ 0.3V)
Input Current, VCC Pin 20mA
Output Current, RESET, RESET
Pin 20mA
Rate of Rise, VCC 100V/s
ESD Rating (Note 2) 2kV
Continuous Power Dissipation (TA = +70°C)
SOT-23 (Note 3) 320mW
Ambient Temperature Range −40°C to +105°C
Maximum Junction Temperature 125°C
Storage Temperature Range −65°C to +160°C
Lead Temperature (soldering, 10sec) +300°C
MCP810 Features
Precise monitoring of 3V, 3.3V, and 5V supply voltages
Fully specified over temperature
140ms min. Power-On Reset pulse width, 240ms typical Active-low RESET Output (MCP809) Active-high RESET Output (MCP810)
Guaranteed RESET Output valid for VCC1V
Low Supply Current, 15A typ.
Power supply transient immunity
Fully specified over temperature
140ms min. Power-On Reset pulse width, 240ms typical Active-low RESET Output (MCP809) Active-high RESET Output (MCP810)
Guaranteed RESET Output valid for VCC1V
Low Supply Current, 15A typ.
Power supply transient immunity
MCP810 Typical Application
Microprocessor Systems
Computers
Controllers
Intelligent Instruments
Portable/Battery-Powered Equipment
Automotive
Computers
Controllers
Intelligent Instruments
Portable/Battery-Powered Equipment
Automotive
MCP810 Connection Diagram
MCP810
PDF/DataSheet Download
- Datasheet: MCP810
- File Size: 490441 KB
- Manufacturer: MICROCHIP
- Click here to Download
- ·MCP100
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP100-485DI/TT
- Microchip Technology
- Analog IC
- 324141 KB
- ·MCP100-485HI/TT
- Microchip Technology
- Analog IC
- 299411 KB
- ·MCP100T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP101
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 227618 KB
- ·MCP101T-485I/TT
- MICROCHIP [Microchip Technology]
- Microcontroller Supervisory Circuit with Push-Pull Output
- 288386 KB
- ·MCP102
- MICROCHIP
- Micropower Voltage Supervisors
- 419025 KB
- ·MCP102-195E/LB
- MICROCHIP [Microchip Technology]
- Micropower Voltage Supervisors
- 430716 KB
MCP810 Relative Products

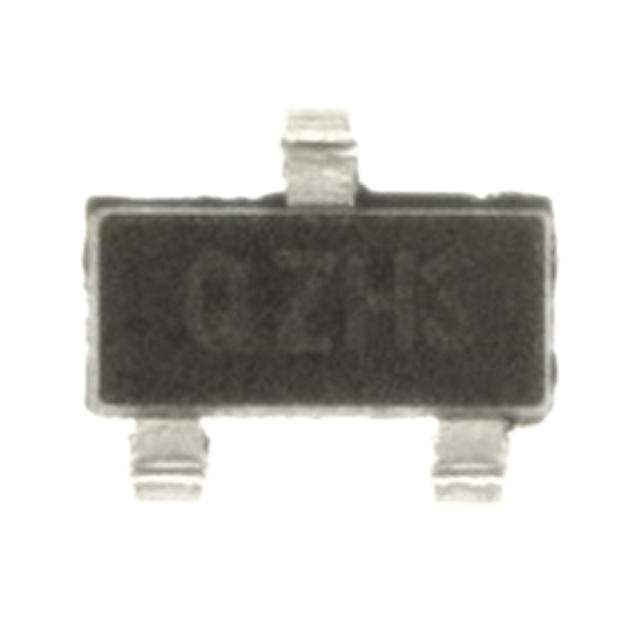

MCP809T-485I/TT
