Part Number: MCT2202



MFG: FAIRCHI





Description: The MCT2XXX series optoisolators consist of a gallium arsenide infrared emitting diode driving a silic...


Urgent Purchase

MCT2202 General Description


The MCT2XXX series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.

MCT2202 Maximum Ratings

Parameter Symbo Device Value Units
TOTAL DEVICE
Storage Temperature		 TSTG ALL -55 to +150 °C
Operating Temperature TOPR ALL -55 to +100 °C
Lead Solder Temperature TSOL ALL 260 for 10 sec °C
Total Device Power Dissipation @ TA = 25°C
 PD -M 250 mW
Non-M 260
-M 2.94 mW/°C
Derate above 25°C Non-M 3.3
EMITTER
DC/Average Forward Input Current		 IF -M 60 mA
Non-M 100
Reverse Input Voltage VR ALL 3 V
Forward Current - Peak (300s, 2% Duty Cycle) IF (pk)
 ALL 3 A
LED Power Dissipation @ TA = 25°C
 PD -M 120 mW
Non-M 150
Derate above 25°C   -M 1.41 mW/°C
Non-M 2.0
DETECTOR
Collector Current		 IC ALL 50 mA
Collector-Emitter Voltage VCEO ALL 30 V
Detector Power Dissipation @ TA = 25°C
 PD ALL 150 mW
-M 1.76 mW/°C
Derate above 25°C Non-M 2.0

MCT2202 Features

UL recognized (File # E90700)
 VDE recognized (File # 94766)
Add option V for white package (e.g., MCT2V-M)
Add option 300 for black package (e.g., MCT2.300)
MCT2 and MCT2E are also available in white package by specifying -M suffix, eg. MCT2-M

MCT2202 Typical Application

Power supply regulators
 Digital logic inputs
Microprocessor inputs

MCT2202 datasheet

MCT2202
PDF/DataSheet Download

  • Datasheet: MCT2202
  • File Size: 633967 KB
  • Manufacturer: FAIRCHILD [Fairchild Semiconductor]
  • Click here to Download

Find MCT2202 Suppliers

  • ·MCT1413B
  • MOTOROLA [Motorola, Inc]
  • High Voltage, High Current Darlington Transistor Array
  • 53987 KB
  • MCT1413B Datasheet Download
  • ·MCT1413BP
  • MOTOROLA [Motorola, Inc]
  • High Voltage, High Current Darlington Transistor Array
  • 53987 KB
  • MCT1413BP Datasheet Download
  • ·MCT1413P
  • MOTOROLA [Motorola, Inc]
  • High Voltage, High Current Darlington Transistor Array
  • 53987 KB
  • MCT1413P Datasheet Download
  • ·MCT2
  • MOTOROLA [Motorola, Inc]
  • 6-Pin DIP Optoisolators Transistor Output
  • 633967 KB
  • MCT2 Datasheet Download
  • ·MCT2.300
  • FAIRCHILD [Fairchild Semiconductor]
  • PHOTOTRANSISTOR OPTOCOUPLERS
  • 633967 KB
  • MCT2.300 Datasheet Download
  • ·MCT2.300W
  • FAIRCHILD [Fairchild Semiconductor]
  • PHOTOTRANSISTOR OPTOCOUPLERS
  • 633967 KB
  • MCT2.300W Datasheet Download
  • ·MCT2.3S
  • FAIRCHILD [Fairchild Semiconductor]
  • PHOTOTRANSISTOR OPTOCOUPLERS
  • 633967 KB
  • MCT2.3S Datasheet Download
  • ·MCT2.3SD
  • FAIRCHILD [Fairchild Semiconductor]
  • PHOTOTRANSISTOR OPTOCOUPLERS
  • 633967 KB
  • MCT2.3SD Datasheet Download

Related Part Number

MCT2202 Relative Products

  • MCT2201

    MCT2201

    The MCT2201 series optoisolators consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.

  • MCT2200

    MCT2200

  • MCT210M

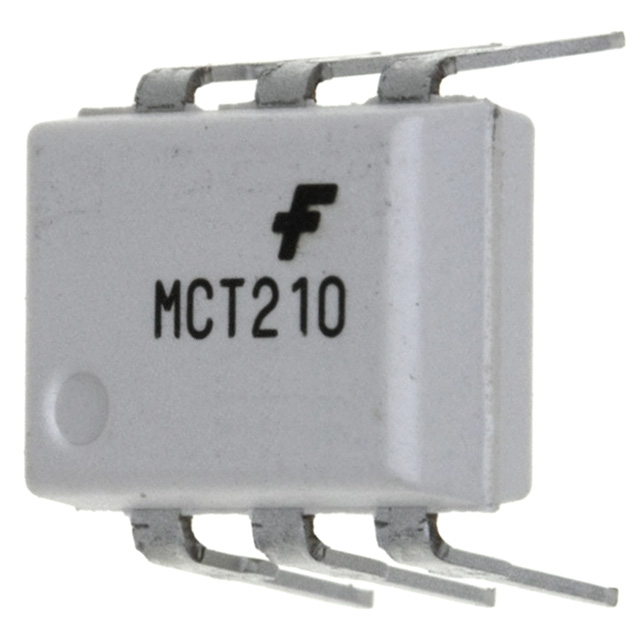

    MCT210M
