MCT5211
-
Suppliers
DataSheet
General Description
MCT5211 General Description
The MCT52XX series consists of a high-efficiency AlGaAs, infrared emitting diode, coupled with an NPN phototransistor in a six pin dual-in-line package.
The MCT52XX is well suited for CMOS to LSTT/TTL interfaces, offering 250% CTRCE(SAT) with 1 mA of LED input current. When an LED input current of 1.6 mA is supplied data rates to 20K bits/s are possible.
The MCT52XX can easily interface LSTTL to LSTTL/TTL, and with use of an external base to emitter resistor data rates of 100K bits/s can be achieved.
MCT5211 Features
• High CTRCE(SAT) comparable to Darlingtons
• CTR guaranteed 0°C to 70°C
• High common mode transient rejection 5kV/s
• Data rates up to 150 kbits/s (NRZ)
• Underwriters Laboratory (UL) recognized (file #E90700)
• VDE recognized (file #94766) Add option 300 (e.g., MCT5211.300)
• CTR guaranteed 0°C to 70°C
• High common mode transient rejection 5kV/s
• Data rates up to 150 kbits/s (NRZ)
• Underwriters Laboratory (UL) recognized (file #E90700)
• VDE recognized (file #94766) Add option 300 (e.g., MCT5211.300)
MCT5211 Typical Application
• CMOS to CMOS/LSTTL logic isolation
• LSTTL to CMOS/LSTTL logic isolation
• RS-232 line receiver
• Telephone ring detector
• AC line voltage sensing
• Switching power supply
• LSTTL to CMOS/LSTTL logic isolation
• RS-232 line receiver
• Telephone ring detector
• AC line voltage sensing
• Switching power supply
MCT5211
PDF/DataSheet Download
- Datasheet: MCT5211
- File Size: 173761 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·MCT1413B
- MOTOROLA [Motorola, Inc]
- High Voltage, High Current Darlington Transistor Array
- 53987 KB
- ·MCT1413BP
- MOTOROLA [Motorola, Inc]
- High Voltage, High Current Darlington Transistor Array
- 53987 KB
- ·MCT1413P
- MOTOROLA [Motorola, Inc]
- High Voltage, High Current Darlington Transistor Array
- 53987 KB
- ·MCT2
- MOTOROLA [Motorola, Inc]
- 6-Pin DIP Optoisolators Transistor Output
- 633967 KB
- ·MCT2.300
- FAIRCHILD [Fairchild Semiconductor]
- PHOTOTRANSISTOR OPTOCOUPLERS
- 633967 KB
- ·MCT2.300W
- FAIRCHILD [Fairchild Semiconductor]
- PHOTOTRANSISTOR OPTOCOUPLERS
- 633967 KB
- ·MCT2.3S
- FAIRCHILD [Fairchild Semiconductor]
- PHOTOTRANSISTOR OPTOCOUPLERS
- 633967 KB
- ·MCT2.3SD
- FAIRCHILD [Fairchild Semiconductor]
- PHOTOTRANSISTOR OPTOCOUPLERS
- 633967 KB
MCT5211 Relative Products

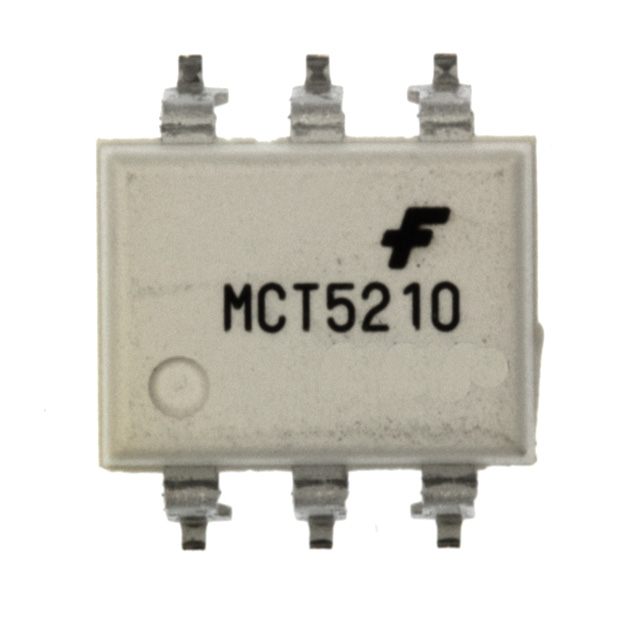

MCT5210SM
