MFG:Fairchild Optoelectronics Group Category:Isolators
Category: Isolators
MFG: Fairchild Optoelectronics Group
Descriptions: OPTOCOUPLER TRANS-OUT 2CH 8-SMD
1000
.30456
304.56
| Technical/Catalog Information | MCT61S |
| Vendor | Fairchild Optoelectronics Group |
| Category | Isolators |
| Isolation Voltage | 5300Vrms |
| Input Type | DC |
| Output Type | Transistor |
| Current - Output/Channel | 30mA |
| Voltage - Output | 30V |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD |
| Packaging | Tube |
| Number of Circuits | 2 - Dual |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | MCT61S MCT61S |
MCT61S
PDF/DataSheet Download
The MCT61 optocouplers have two channels for density applications. For four channel applications, two packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar phototransistor optically coupled to a gallium arsenide infrared emitt...
The MCT6X optocouplers have two channels for density applications. For four channel applications, two packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar phototransistor optically coupled to a gallium arsenide infrared emitt...
OPTOCOUPLER TRANS OUT VDE 6-SMD
OPTOCOUPLER PHOTO TRANS 6SMD

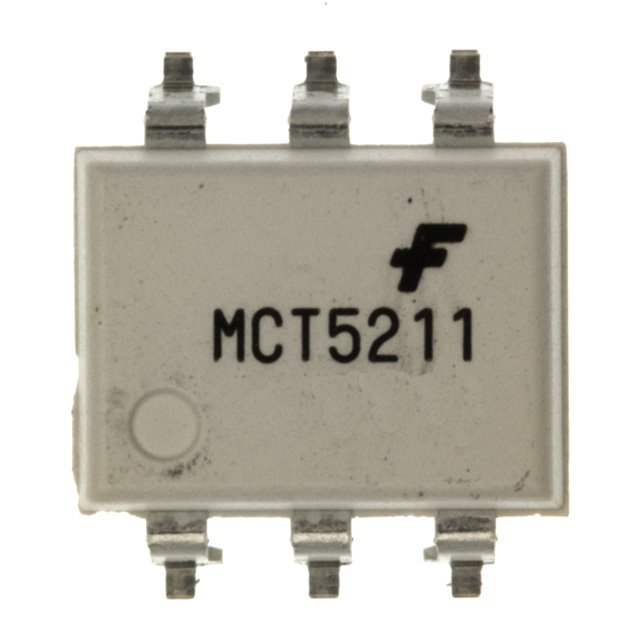

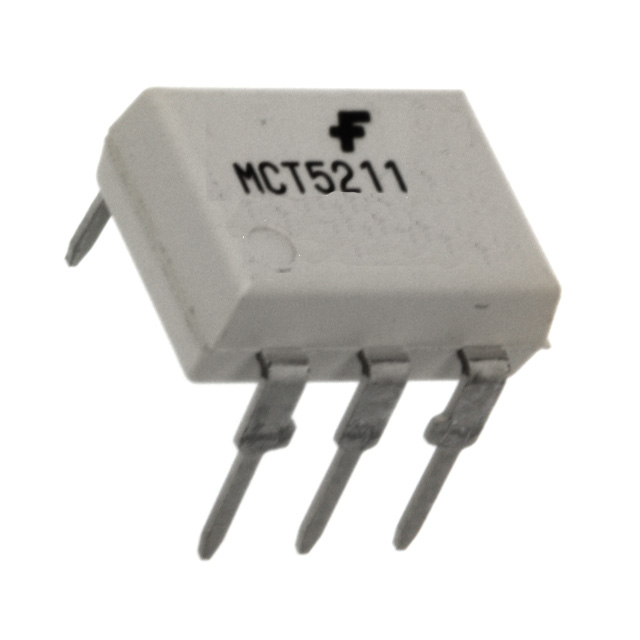

The MCT5211M series consists of a high-efficiencyAlGaAs, infrared emitting diode, coupled with an NPNphototransistor in a six pin dual-in-line package. The MCT5211M is well suited for CMOS to LSTT/TTLinterfaces, offering 250% CTRCE(SAT)with 1mA of LEDinput ...
The MCT5211 series consists of a high-efficiency AlGaAs, infrared emitting diode, coupled with an NPN phototransistor in a six pin dual-in-line package. The MCT5211 is well suited for CMOS to LSTT/TTL interfaces, offering 250% CTRCE(SAT) with 1 mA of LED inp...
