General Description
MD1421N General Description
MD1421N is a non-isolated, PWM control stepping down DC to DC converter power IC including main MOSFET switch and synchronous rectification MOSFET inside. It has maximum 15W ( 5V, 3A ) output power and high efficiency in wide range. It also has wide input voltage range ( 8 - 40V ) and it is possible to get 3.3V or 5V output voltage by selecting terminal. Its package is new compact surface mount type (SSOP-32) and it is possible to design DC to DC converter with fewer external components and smaller mounting area.
MD1421N Maximum Ratings
|
Item |
Symbol |
Rating |
Unit |
|
Line voltage |
VIN |
42 |
V |
|
Output MOS input voltage |
VDD |
42 |
V |
|
Output current ( A V E ) |
IOUTave |
3 |
A |
|
Output current ( P E A K ) |
OUTpeak |
4 |
A |
|
Remote control voltage |
VRC |
5.5 |
°C |
|
Storage temperature |
Tstg |
-40~150 |
°C |
|
Junction temperature |
Tj |
150 |
°C |
MD1421N Features
·Input Voltage range 8-40V
·Maximum Output Current 3A
·Included main MOSFET switch and synchronous rectification MOSFET
·Output 3.3V / 5V (Selective with output switching terminal)
·High Efficiency typ. 95% (at:Vin=8V, Vout=5V, Iout=1A)
·Fixed Frequency 250kHz PWM Control
·Over Current Protection Function
·Low Input Voltage Protection Function (UVLO)
·Thermal Shut Down Function
·Remote control On / Off function
·Maximum Output Current 3A
·Included main MOSFET switch and synchronous rectification MOSFET
·Output 3.3V / 5V (Selective with output switching terminal)
·High Efficiency typ. 95% (at:Vin=8V, Vout=5V, Iout=1A)
·Fixed Frequency 250kHz PWM Control
·Over Current Protection Function
·Low Input Voltage Protection Function (UVLO)
·Thermal Shut Down Function
·Remote control On / Off function

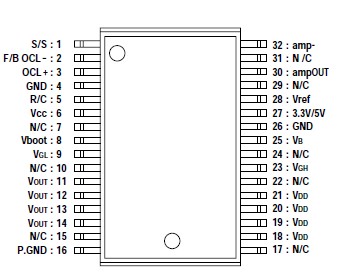

MD1421N Connection Diagram
MD1421N
PDF/DataSheet Download
- Datasheet: MD1421N
- File Size: 291856 KB
- Manufacturer: SHINDENGEN [Shindengen Electric Mfg.Co.Ltd]
- Click here to Download
