Part Number: MD1620F



MFG: SHINDENG..







Urgent Purchase

MD1620F Maximum Ratings

Item
Symbol
Rating
Unit
Power Supply Voltage
VIN
60
V
Output MOS Input Voltage
VDD
60
V
Output Current (A V E )
IOUTave
2
A
Output Current ( P E A K )
IOUTpeak
3
A
Storage Temperature
Tstg
-40~150
Junction Temperature
Tj
150

MD1620F Features

·Input Voltage Range 12-57V
·Maximum Output Current 2A
·Included main MOSFET switch and free wheel SBD
·Fixed Frequency 250kHz PWM Control
·Over Current Protection Function
·Low Input Voltage Protection Function (ULVO)
·Thermal Shut Down Function

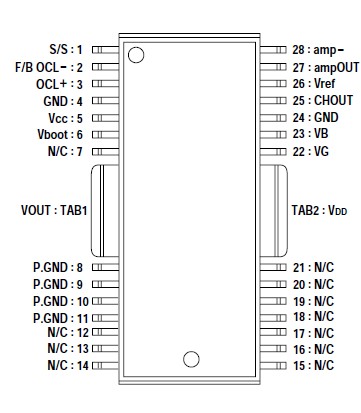

MD1620F Connection Diagram

MD1620F Connection Diagram

MD1620F datasheet

MD1620F
PDF/DataSheet Download

  • Datasheet: MD1620F
  • File Size: 441159 KB
  • Manufacturer: SHINDENGEN [Shindengen Electric Mfg.Co.Ltd]
  • Click here to Download
