Purchase MD4S, In-stock MD4S From SeekIC.
MFG:RECTRON
- Table of contents:
MD4S
-
Suppliers
DataSheet
General Description
MD4S Maximum Ratings
|
RATINGS |
SYMBOL |
MD1S |
MD2S |
MD3S |
MD4S |
MD5S |
MD6S |
MD7S |
UNITS |
|
Maximum Recurrent Peak Reverse Voltage |
VRRM |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
Volts |
|
Maximum RMS Bridge Input Voltage |
VRMS |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
Volts |
|
Maximum DC Blocking Voltage |
VDC |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
Volts |
|
Maximum Average Forward Output Rectified Current at TA = 30oC - on glass-epoxy P.C.B. ( NOTE 1 ) - on aluminum substrate ( NOTE 2 ) |
IO |
0.5 0.8 |
Amps | ||||||
|
Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) |
IFSM |
30 |
Amps | ||||||
|
Operating Temperature Range |
TJ |
-55 to + 150 |
0C | ||||||
|
Storage Temperature Range |
TSTG |
-55 to + 150 |
0C | ||||||
MD4S Features
·Surge overload rating - 30 amperes peak
·Ideal for printed circuit board
·Reliable low cost construction utilizing molded
·Glass passivated device
·Polarity symbols molded on body
·Mounting position: Any
·Weight: 0.5 gram
·Ideal for printed circuit board
·Reliable low cost construction utilizing molded
·Glass passivated device
·Polarity symbols molded on body
·Mounting position: Any
·Weight: 0.5 gram
MD4S
PDF/DataSheet Download
- Datasheet: MD4S
- File Size: 22515 KB
- Manufacturer: RECTRON [Rectron Semiconductor]
- Click here to Download
- ·MD435
- Analog IC
- 527694 KB
MD4S Relative Products
MD-435
MD-435 is a kind of double balanced mixer. What comes next is about the guaranteed specifications of MD-435(from -55 to +85). The frequency range is from 0.5 to 600 MHz for RF, LO ports and is from DC to 600 MHz for IF port. The maximum conversion loss is 7...

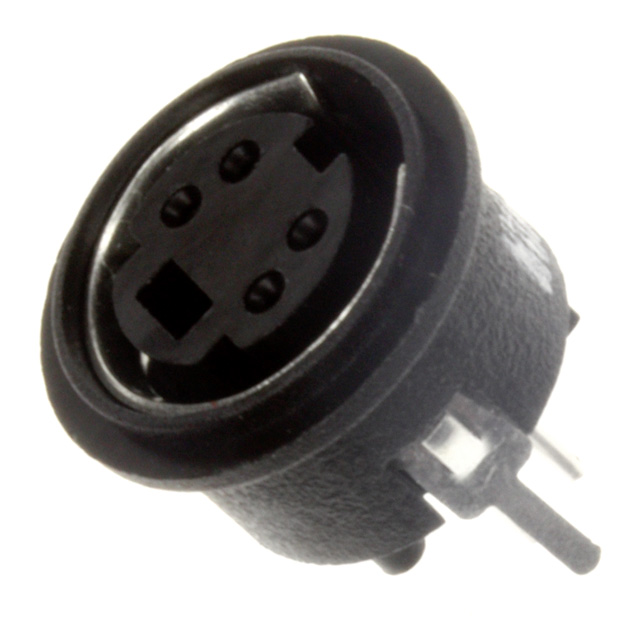

MD-40SV
CONN MINI-DIN 4PIN FEM VERT

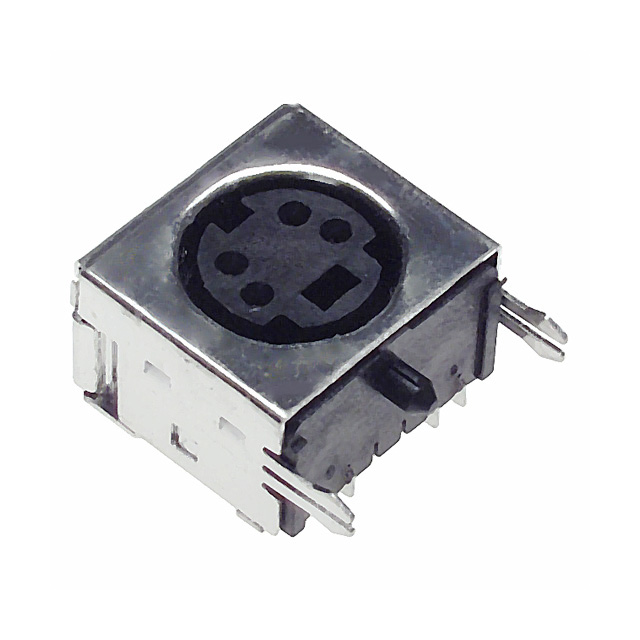

MD-40ST-SMT-1
CONN MINIDIN RECPT SLIM SMD-TRAY

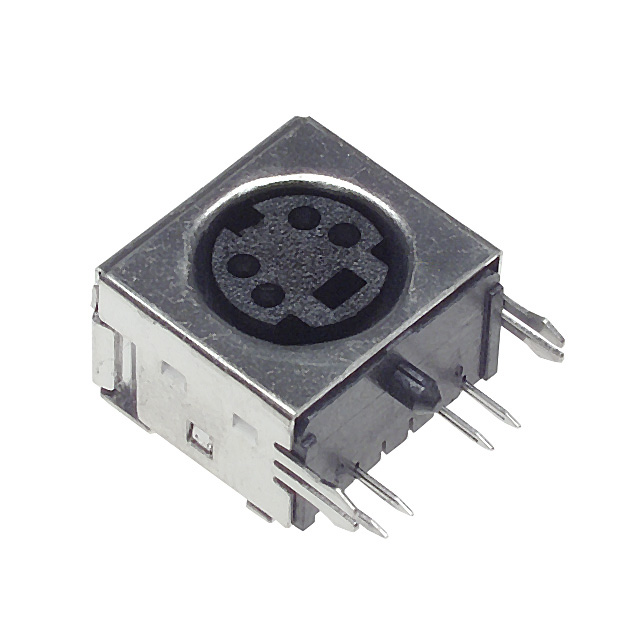

MD-40ST
