Purchase MD56V62160/H, In-stock MD56V62160/H From SeekIC.
Part Number: MD56V62160/H
Description: The MD56V62160/H is a 4-bankx1,048,576-wordx16-bit synchronous dynamic RAM, fabricated in Oki's CMOS s...
- Table of contents:
MD56V62160/H
-
Suppliers
DataSheet
General Description
MD56V62160/H General Description
The MD56V62160/H is a 4-bankx1,048,576-wordx16-bit synchronous dynamic RAM, fabricated in Oki's CMOS silicon-gate process technology. The device operates at 3.3 V. The inputs and outputs are LVTTL compatible.
MD56V62160/H Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
0.5 to VCC + 0.5 |
V |
| VCC Supply Voltage |
VCC, VCCQ |
0.5 to 4.6 |
V |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
| Power Dissipation |
PD* |
1 |
W |
| Short Circuit Current |
IOS |
50 |
mA |
| Operating Temperature |
Topr |
0 to 70 |
°C |
MD56V62160/H Features
• Silicon gate, quadruple polysilicon CMOS, 1-transistor memory cell
• 4-bankx 1,048,576-wordx 16-bit configuration
• 3.3 V power supply, ±0.3 V tolerance
• Input : LVTTL compatible
• Output : LVTTL compatible
• Refresh : 4096 cycles/64 ms
• Programmable data transfer mode
CAS latency (2, 3)
Burst length (2, 4, 8)
Data scramble (sequential, interleave)
• CBR auto-refresh, Self-refresh capability
• Package: 54-pin 400 mil plastic TSOP (Type II) (TSOPII54-P-400-0.80-K) (Product : MD56V62160/H-xxTA) xx indicates speed rank.

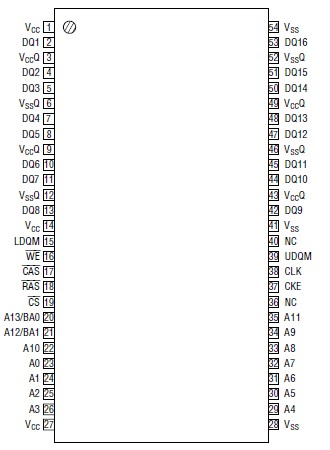

MD56V62160/H Connection Diagram
