Product Details

Description



Features:

`  Fully CMOS static design
`  8-bit data bus
`  On chip ROM size : 1K words
`  Internal RAM size : 32 bytes
  (25 general purpose registers, 7 special registers)
`  36 single word instructions
`  14-bit instructions
`  2-level stacks
`  Operating voltage : 2.3V ~ 6.0 V
`  Operating frequency : 0 ~ 20 MHz
`  The most fast execution time is 200 ns
  under 20 MHz in all single cycle
  instructions except the branch instructions
`  Addressing modes include direct,
  indirect and relative addressing modes
`  Power-on Reset
`  Power edge-detector Reset
`  Sleep Mode for power saving
`  8-bit real time clock/counter(RTCC) with
  8-bit programmable prescaler
`  4 types of oscillator can be selected by
  programming option (Internal Capacitor about 10p ):
  RC-Low cost RC oscillator
  LFXT-Low frequency crystal oscillator
  XTAL-Standard crystal oscillator
  HFXT-High frequency crystal oscillator
`  4 oscillator start-up time can be
  selected by programming option:
  150 ms, 20 ms, 40 ms, 80 ms
`  On-chip RC oscillator based Watchdog
  Timer(WDT) can be operated freely
`  12 I/O pins with their own independent
  direction control


Application

The application areas of this MDT10P10  range from appliance motor control an high speed automotive to low power remote transmitters/receivers, pointing devices, and telecommunications processors, such as Remote controller, small instruments, chargers, toy, automobile and PC peripheral . etc.

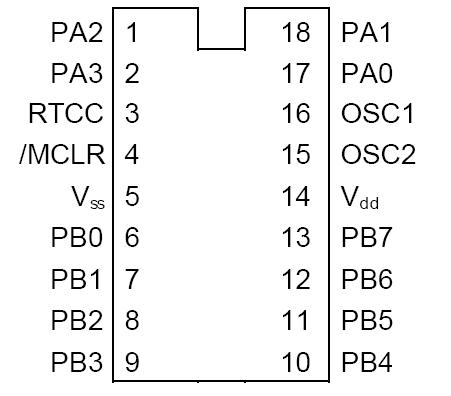

Pinout

Connection Diagram


Description

This MDT10P10 EPROM-Based 8-bit micro-controller uses a fully static CMOS design technology combines higher speeds and smaller size with the low power and high noise immunity. On chip memory system includes 1.0 K words of ROM, and 32 bytes of static RAM.
