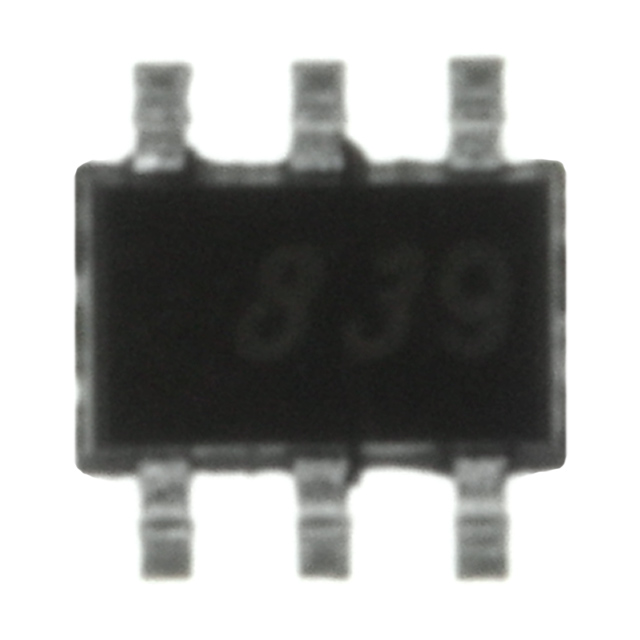

MGA-83563-TR2G Product Image

MGA Series Datasheet download

Five Points

Part Number: MGA-83563-TR2G

Category: RF and RFID

MFG: Avago Technologies US Inc.





Descriptions: IC AMP RFIC GAAS 3V 20DBM SOT363

Price Break

10000

Unit Price

1.69650

Extended Price

16965.00

(All prices are in USD) Prices for reference only
Urgent Purchase

MGA-83563-TR2G General Description

IC AMP RFIC GAAS 3V 20DBM SOT363

MGA-83563-TR2G Parameters

Technical/Catalog InformationMGA-83563-TR2G
VendorAvago Technologies US Inc.
CategoryRF and RFID
Package / CaseSC-70-6, SC-88, SOT-323-6, SOT-363
Voltage - Supply2.7V ~ 3.6V
Current - Supply152mA ~ 200mA
Gain23dB
Frequency500MHz ~ 6GHz
RF TypeCellular, ISM, PCS
PackagingTape & Reel (TR)
Noise Figure-
P1db19.7dBm
Test Frequency2GHz
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MGA 83563 TR2G
