Features:

• Dual IF Inputs 50 to 250 MHz
• 90dB AGC Gain Control
• IQ demodulator
• On chip oscillator provides high accuracy
   quadrature LO generation
• Optional IF Output
• 3 Volt Power Supply
• 28 lead QSOP Package


Pinout

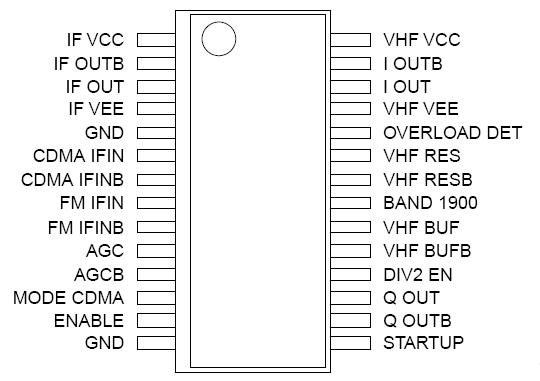

Connection Diagram


Specifications

Description Min Typ Max Units Comments
Supply Voltage     4.0 Volts
Operation temperature, Tamb -30   +100 °C Ambient temperature
Storage temperature, Tstg -40   +125 °C
Junction temperature, Tj     +150 °C
Power dissipation     350 mW
Maximum Pin Voltage     Vcc+0.6 Volts All pins except VCC
and GND
Minimum Pin Voltage -0.6     Volts All pins except VCC
and GND
ESD voltage 1.75     kV Human Body Metal



Description

The MGCR01 is designed for use in dual mode mobile phones (TDMA/AMPS and CDMA/AMPS). The circuit provides IF amplification with gain controland differential I and Q baseband outputs. The MGCR01 interfaces directly with MGCM01 for TDMA/AMPS (using 60kHz low IF) and MGCM03 or MGCM04 for CDMA and AMPS applications. The on chip oscillator and prescaler are also compatible with the PLL synthesisers on these devices.
