Part Number: MH80626C









Description: The MH80626C hybrid SIP provides a protection circuit consisting of two 2AG size fuses in surfacemounted fuse clips and...


Urgent Purchase

MH80626C General Description


The MH80626C hybrid SIP provides a protection circuit consisting of two 2AG size fuses in surfacemounted fuse clips and two high voltage, high power 5.5 surge resistors.

The MH80626C also provides two high stability, high power 50 feed resistor matched to 0.1%.

The SIP provides full secondary protection for the MH89626C Off-Premise SLIC, allowing conformance to the requirements of various international safety and performance standards.

MH80626C Features

• 2 x high power, high voltage, thick film surge protection resistors
• 2 x high accuracy, high stability matched battery feed resistors
• 2 replaceable 2AG fuses in surface-mounted fuse clips
• Used with the MH89626C for a complete OPS line interface

MH80626C Typical Application

Battery feed and secondary protection for Off- Premise SLICS

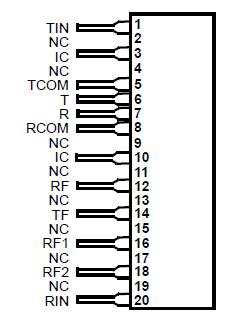

MH80626C Connection Diagram

MH80626C Connection Diagram

MH80626C datasheet

MH80626C
PDF/DataSheet Download

  • Datasheet: MH80626C
  • File Size: 30527 KB
  • Manufacturer: MITEL [Mitel Networks Corporation]
  • Click here to Download
