MH88612BV-K General Description


The SLIC provides a complete interface between a switching system and a subscriber loop. Functions provided include battery feed and ringing feed to the subscriber line, 2-Wire to 4-Wire hybrid interfacing, constant current feed with constant voltage foldback, and dial pulse detection. The device is fabricated using thick film hybrid technology in a 20-pin single in-line package.

MH88612BV-K Maximum Ratings


Parameter
Symbol
Min
Max
Units
1
 DC Supply Voltage
LPGND = AGND
VCC
-0.3
9
V
VEE
-9
0.3
V
VBAT
-60
0.3
V
VRLY
-0.3
40
V
2
 Storage Temperature
TS
-40
100
°C
3
 3 Package Power Dissipation
PD
2
W

MH88612BV-K Features

• Transformerless 2-wire to 4-wire conversion
• Battery and ringing feed to line.
• Off-hook and dial pulse detection.
• Ring ground over-current protection.
• Constant current feed with constant voltage foldover.
• Relay driver.
• Power Denial.
• Wide Operating Range.
• Pin for pin compatible 600R and 900R variants.

MH88612BV-K Typical Application

Line interface for:
• PABX
• Intercoms
• Key Telephone Systems
• Control Systems

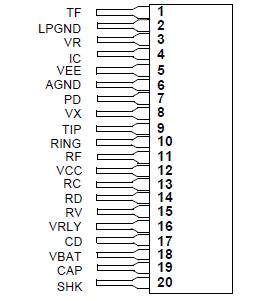

MH88612BV-K Connection Diagram

MH88612BV-K Connection Diagram

MH88612BV-K datasheet

MH88612BV-K
PDF/DataSheet Download

  • Datasheet: MH88612BV-K
  • File Size: 48415 KB
  • Manufacturer: MITEL [Mitel Networks Corporation]
  • Click here to Download
