Part Number: MH89626C
Description: The MH89626C SLIC provides all of the functions required to interface 2-wire off premise subscriber loops to a serial T...
- Table of contents:
MH89626C
-
Suppliers
DataSheet
General Description
MH89626C General Description
The MH89626C SLIC provides all of the functions required to interface 2-wire off premise subscriber loops to a serial TDM, PCM, switching network of a modern PBX. The MH89626C is manufactured using thick film hybrid technology which offers high voltage capability, reliability and high density resulting in significant printed circuit board area saving of the line cards. A complete line card can be implemented with very few external components.
The SLIC has a simple serial control interface to control the receive gain setting, relay drivers for ringing, and Tip/Ring reversal for DID operation.
MH89626C Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Units | |
|
1 |
DC Supply Voltage |
VDD |
-0.3 |
7 |
V |
|
VEE |
0.3 |
-7 | |||
|
2 |
DC Battery Voltage |
VBAT |
0.3 |
-65 |
V |
|
3 |
DC Ring Relay Voltage |
VRLY |
-0.3 |
7 |
V |
|
4 |
DC Reference Voltage |
VREF |
-0.3 |
VDD |
V |
|
5 |
AC Ring Generator Voltage |
150 |
VRMS | ||
|
6 |
DC Digital Input Voltage |
GS, CSTi DSTi, C2i F1i |
-0.3 |
VDD |
V |
|
8 |
Storage Temperature |
TS |
-40 |
+125 |
°C |
MH89626C Features
• Transformerless 2-4 wire conversion
• Constant current with constant voltage fallback for long loops
• Long length capability (RLoop > 1850)
• Input impedance
• 200 + 560 // 0.1F (MH89626C-02)
• 200+ 680 // 0.1F (MH89626C-04)
• Ring trip filter with auto ring trip
• Three relay drivers
• Built-in Tip/Ring reversal capability on the hybrid
• Serial control interface
• External or software programmable receive gain, -3.5 or -7.0dB
• Constant current with constant voltage fallback for long loops
• Long length capability (RLoop > 1850)
• Input impedance
• 200 + 560 // 0.1F (MH89626C-02)
• 200+ 680 // 0.1F (MH89626C-04)
• Ring trip filter with auto ring trip
• Three relay drivers
• Built-in Tip/Ring reversal capability on the hybrid
• Serial control interface
• External or software programmable receive gain, -3.5 or -7.0dB
MH89626C Typical Application
• Off-Premise PBX Line Cards
• DID (Direct Inward Dial) Line Cards
• Central Office Line Cards
• DID (Direct Inward Dial) Line Cards
• Central Office Line Cards

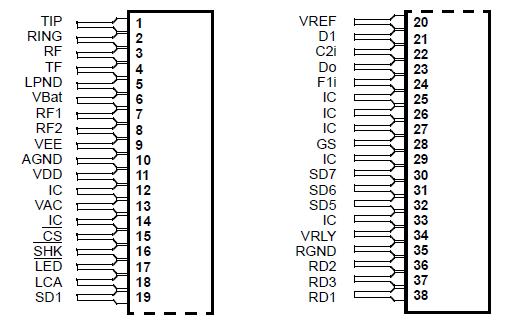

MH89626C Connection Diagram
MH89626C
