General Description
MIC2213 General Description
The MIC2213 is a dual Cap low dropout regulator with an open-drain driver and power-on reset circuit. The first regu- lator is capable of sourcing 150mA, while the second regula- tor can source up to 300mA. A power-on reset function monitors both outputs, indicating a fault on either output 1 or output 2. The open-drain output is capable of sinking 150mA for LED backlighting applications.
The MIC2213 adds the additional feature of sequencing between the outputs, with the output of regulator 1 having to settle before the output of regulator 2 can begin to turn-on. Ideal for battery operated applications, the MIC2213 offers1% accuracy, extremely low dropout voltage (80mV @ 100mA), and extremely low ground current, only 48A total. Equipped with a TTL logic compatible enable pin, the MIC2213 can be put into a zero-off-mode current state, drawing no current when disabled.
MIC2213 Maximum Ratings
Supply Input Voltage (VIN )....................................0V to +7V
Enable Input Voltage (VEN).....................................0V to +7V
Power Dissipation (PD).....................Internally Limited Note 3
Junction Temperature (TJ )........................-40°C to +125°C
Storage Temperature (TS)...........................-65°C to 150°C
Open-Drain Output (DRV)............................................250mA
Lead Temperature (soldering, 5 sec.).........................260°C
Enable Input Voltage (VEN).....................................0V to +7V
Power Dissipation (PD).....................Internally Limited Note 3
Junction Temperature (TJ )........................-40°C to +125°C
Storage Temperature (TS)...........................-65°C to 150°C
Open-Drain Output (DRV)............................................250mA
Lead Temperature (soldering, 5 sec.).........................260°C
MIC2213 Features
2 LDO outputs
Output 1 - 150mA output current
Output 2 - 300mA output current
1 Open-drain driver
Power-on reset function with adjustable delay
Sequencing between outputs 1 and 2
Input voltage range: 2.25V to 5.5V
Stable with ceramic output capacitor
Low dropout voltage of 80mV @ 100mA
Ultra-low quiescent current of 48A
High output accuracy:
+1.0% initial accuracy
+2.0% over temperature
Thermal Shutdown Protection
Current Limit Protection
Tiny 3mm * 3mm MLF™-10 package
Output 1 - 150mA output current
Output 2 - 300mA output current
1 Open-drain driver
Power-on reset function with adjustable delay
Sequencing between outputs 1 and 2
Input voltage range: 2.25V to 5.5V
Stable with ceramic output capacitor
Low dropout voltage of 80mV @ 100mA
Ultra-low quiescent current of 48A
High output accuracy:
+1.0% initial accuracy
+2.0% over temperature
Thermal Shutdown Protection
Current Limit Protection
Tiny 3mm * 3mm MLF™-10 package
MIC2213 Typical Application
Cellular/PCS phones
Wireless modems
PDAs
Wireless modems
PDAs

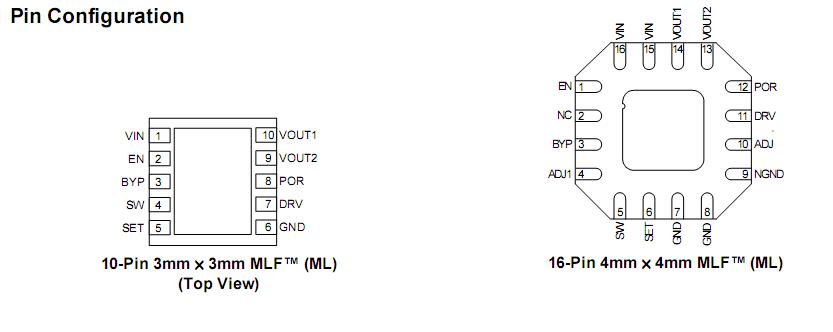

MIC2213 Connection Diagram
MIC2213
PDF/DataSheet Download
