General Description
MIC2550A General Description
The MIC2550A is a single-chip transceiver that complies with the physical layer specifications for Universal Serial Bus
(USB).
The MIC2550A supports full-speed (12Mbps) and low-speed (1.5Mbps) operation and introduces superior edge rate control to produce crisper eye diagrams. As a result, the task of passing USB compliance testing is made easier. Aunique, patented, dual supply voltage operation allows the MIC2550A to reference the system I/F I/O signals to a supply voltage down to 2.5V while independently powered by the USB VBUS. This allows the system interface to operate at its core voltage without addition of buffering logic and also reduce system operating current.
MIC2550A Maximum Ratings
Supply Voltage (VIF) ...................................................+6.5V
Input Voltage (VBUS) ........................ 0.5V(min)/5.5V(max)
Output Current (ID+, ID) ...........................................±50mA
Output Current (all others) .......................................±15mA
Input Current ............................................................ ±50mA
Storage Temperature (TS) ......................... 65° to +150°C
ESD, Note 3VBUS, D+, D ......................................................... ±10kV
All other pins ........................................................... ±2kV
Input Voltage (VBUS) ........................ 0.5V(min)/5.5V(max)
Output Current (ID+, ID) ...........................................±50mA
Output Current (all others) .......................................±15mA
Input Current ............................................................ ±50mA
Storage Temperature (TS) ......................... 65° to +150°C
ESD, Note 3VBUS, D+, D ......................................................... ±10kV
All other pins ........................................................... ±2kV
MIC2550A Features
• Compliant to USB Specification Revision 2.0 for low-speed (1.5Mbps) and full-speed (12Mbps) operation
• Compliant to IEC-61000-4.2 (Level 2)
• Operation down to 2.5V
• Dual supply voltage operation
•Integrated speed-select termination supply
• Very low power consumption meets USB suspend-current requirements
• Small 14-pin TSSOP and 16-pin MLF™ packages
• Compliant to IEC-61000-4.2 (Level 2)
• Operation down to 2.5V
• Dual supply voltage operation
•Integrated speed-select termination supply
• Very low power consumption meets USB suspend-current requirements
• Small 14-pin TSSOP and 16-pin MLF™ packages
MIC2550A Typical Application
• Personal digital assistants (PDA)
• Palmtop computers
• Cellular telephones
• Palmtop computers
• Cellular telephones

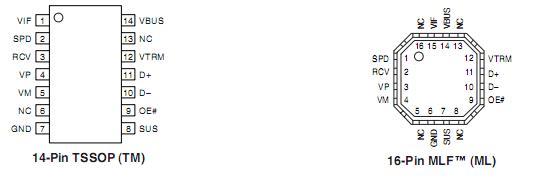

MIC2550A Connection Diagram
MIC2550ABML
