General Description
MIC2982 General Description
The MIC2981/82 is an 8-channel, high-voltage, high-current source driver array ideal for switching high-power loads from logic-level TTL, CMOS, or PMOS control signals.
These drivers can manage multiple loads of up to 50V and 500mA, limited only by package power dissipation.
Micrel's MIC2981/82 features inputs compatible with 5V TTL and 5V to 15V CMOS or PMOS logic outputs. Micrel's dualmarked device replaces either UDN2981 or UDN2982 devices.
The MIC2981/82 is available in the 18-pin plastic DIP and 18-lead wide SOP package. Both devices operate in the industrial temperature range.
MIC2982 Maximum Ratings
Supply Voltage (VS) ......................................................50V
Output Voltage (VCE) ...................................................50V
Continuous Output Current (IC) ..............................500mA
Input Voltage (VIN)
MIC2981/82 .................................................................30V
Ground Current (IGND) ...................................................3A
Junction Temperature (TJ) .....................................+150°C
Storage Temperature (TS) ......................65°C to +150°C
Output Voltage (VCE) ...................................................50V
Continuous Output Current (IC) ..............................500mA
Input Voltage (VIN)
MIC2981/82 .................................................................30V
Ground Current (IGND) ...................................................3A
Junction Temperature (TJ) .....................................+150°C
Storage Temperature (TS) ......................65°C to +150°C
MIC2982 Features
• Output voltage to 50V
• Output current to 500mA
• Transient-protected outputs
• Integral clamp diodes
• TTL, CMOS, or PMOS compatible inputs
• Output current to 500mA
• Transient-protected outputs
• Integral clamp diodes
• TTL, CMOS, or PMOS compatible inputs
MIC2982 Typical Application
• Relay and solenoid switching
• Stepping motor
• LED and incandescent displays
• Stepping motor
• LED and incandescent displays

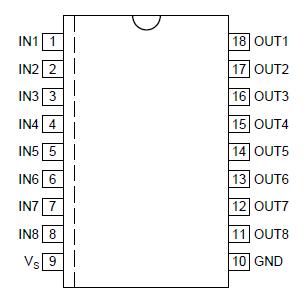

MIC2982 Connection Diagram
MIC
PDF/DataSheet Download
- Datasheet: MIC
- File Size: 15788 KB
- Manufacturer: STMicroelectronics
- Click here to Download
- ·MIC10937
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric Display Controller
- 374205 KB
- ·MIC10937J-40
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric Display Controller
- 374205 KB
- ·MIC10937P-40/
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric Display Controller
- 374205 KB
- ·MIC10937PE-40/
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric Display Controller
- 374205 KB
- ·MIC10939
- MICREL [Micrel Semiconductor]
- V. F. Dot Matrix Display Controller
- 20990 KB
- ·MIC10939J-50
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric and Bargraph Display Controller Summary Information*?Not Recommended for New Designs
- 20990 KB
- ·MIC10939P-50
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric and Bargraph Display Controller Summary Information*?Not Recommended for New Designs
- 20990 KB
- ·MIC10939PE-50
- MICREL [Micrel Semiconductor]
- V. F. Alphanumeric and Bargraph Display Controller Summary Information*?Not Recommended for New Designs
- 20990 KB
MIC2982 Relative Products

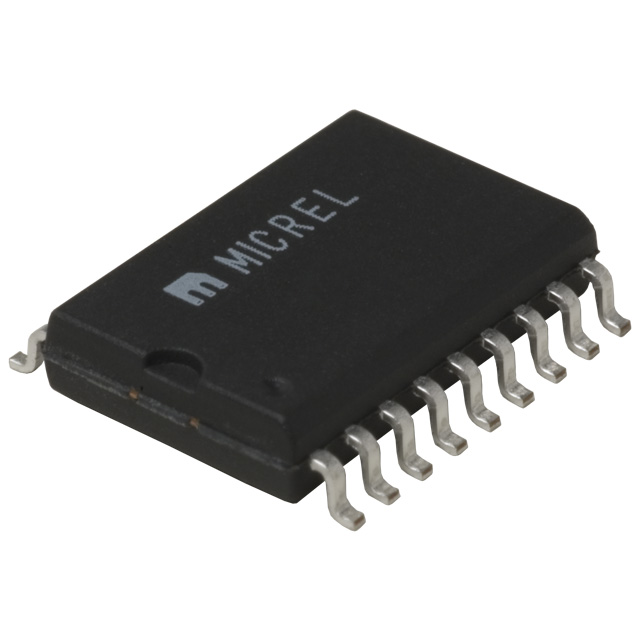

MIC2981/82YWM
