MIC4120

Features: • CMOS Construction• Latch-Up Protected: Will Withstand >500mA Reverse Output Current• Logic Input Withstands Negative Swing of Up to 5V• Matched Rise and Fall Times ................................ 25ns• High Peak Output Current ............................

product image

MIC4120 Picture
See larger image
SeekIC No. : 004420919 Detail

MIC4120: Features: • CMOS Construction• Latch-Up Protected: Will Withstand >500mA Reverse Output Current• Logic Input Withstands Negative Swing of Up to 5V• Matched Rise and Fall T...

MIC4120 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MIC4120
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• CMOS Construction
• Latch-Up Protected: Will Withstand >500mA Reverse Output Current
• Logic Input Withstands Negative Swing of Up to 5V
• Matched Rise and Fall Times ................................ 25ns
• High Peak Output Current ............................... 6A Peak
• Wide Operating Range ............................... 4.5V to 20V
• High Capacitive Load Drive ............................10,000pF
• Low Delay Time .............................................. 55ns Typ
• Logic High Input for Any Voltage From 2.4V to VS
• Low Equivalent Input Capacitance (typ) ..................6pF
• Low Supply Current ...............450A With Logic 1 Input
• Low Output Impedance ......................................... 2.5
• Output Voltage Swing Within 25mV of Ground or VS
• Exposed backside pad packaging reduces heat
   - ePAD SOIC-8L (JA = 58°C/W)
   - ePAD MSOP-8L (JA = 60°C/W)
   - 3mm x 3mm MFL™-8L (JA = 60°C/W)


Application

• Switch Mode Power Supplies
• Motor Controls
• Pulse Transformer Driver
• Class-D Switching Amplifiers


Pinout

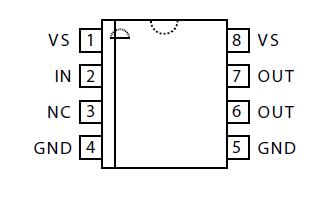

Connection Diagram


Specifications

Supply Voltage..............................24V
Input Voltage  ....................VS + 0.3V to GND 5V
Input Current (VIN > VS) ........................50mA
Storage Temperature ..................65°C to +150°C
Lead Temperature (10 sec.)  .....................300°C


Description

MIC4120 and MIC4129 MOSFET drivers are tough, efficient, and easy to use. The MIC4129 is an inverting driver, while it is a non-inverting driver. The MIC4120 and MIC4129 are improved versions of the MIC4420 and MIC4429.

MIC4120 and MIC4129 are capable of 6A (peak) output and can drive the largest MOSFETs with an improved safe operating margin. The MIC4120/4129 accept any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge. MIC4120/4129 drivers can replace three or more discrete
components, reducing PCB area requirements, simplifying product design, and reducing assembly cost.

Modern BiCMOS/DMOS MIC4120 and MIC4129 construction guarantees freedom from latch-up. The rail-to-rail swing capability insures adequate gate voltage to the MOSFET during power up/down sequencing.
