Description: The MIC5207 is an efficient linear voltage regulator with ultralow-noise output, very low dropout volt...
- Table of contents:
MIC5207
-
Suppliers
DataSheet
General Description
MIC5207 General Description
The MIC5207 is an efficient linear voltage regulator with ultralow-noise output, very low dropout voltage (typically 17mV at light loads and 165mV at 150mA), and very low ground current (720A at 100mA output). The MIC5207 offers better than 3% initial accuracy.Designed especially for hand-held, battery-powered devices,the MIC5207 includes a CMOS or TTL compatible enable/shutdown control input. When shutdown, power consumption drops nearly to zero.
Key MIC5207 features include a reference bypass pin to improve its already low-noise performance, reversed-attery protection, current limiting, and overtemperature shutdown.The MIC5207 is available in fixed and adjustable output voltage versions in a small SOT-23-5 package. Contact Micrel for details.For low-dropout regulators that are stable with ceramic output capacitors, see the Cap MIC5245/6/7 family
MIC5207 Maximum Ratings
Supply Input Voltage (VIN) ............................ 20V to +20V
Enable Input Voltage (VEN) ........................... 20V to +20V
Power Dissipation (PD) ............... Internally Limited, Note 3
Lead Temperature (soldering, 5 sec.) ....................... 260°C
Junction Temperature (TJ)
all except 1.8V ...................................... 40°C to +125°C
1.8V only .................................................. 0°C to +125°C
Storage Temperature (TS) ....................... 65°C to +150°C
Enable Input Voltage (VEN) ........................... 20V to +20V
Power Dissipation (PD) ............... Internally Limited, Note 3
Lead Temperature (soldering, 5 sec.) ....................... 260°C
Junction Temperature (TJ)
all except 1.8V ...................................... 40°C to +125°C
1.8V only .................................................. 0°C to +125°C
Storage Temperature (TS) ....................... 65°C to +150°C
MIC5207 Features
• Ultra-low-noise output
• High output voltage accuracy
• Guaranteed 180mA output
• Low quiescent current
• Low dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Current and thermal limiting
• Reverse-battery protection
• "Zero" off-mode current
• Logic-controlled electronic enable
• High output voltage accuracy
• Guaranteed 180mA output
• Low quiescent current
• Low dropout voltage
• Extremely tight load and line regulation
• Very low temperature coefficient
• Current and thermal limiting
• Reverse-battery protection
• "Zero" off-mode current
• Logic-controlled electronic enable
MIC5207 Typical Application
• Cellular telephones
• Laptop, notebook, and palmtop computers
• Battery-powered equipment
• PCMCIA VCC and VPP regulation/switching
• Consumer/personal electronics
• SMPS post-regulator/dc-to-dc modules
• High-efficiency linear power supplies
• Laptop, notebook, and palmtop computers
• Battery-powered equipment
• PCMCIA VCC and VPP regulation/switching
• Consumer/personal electronics
• SMPS post-regulator/dc-to-dc modules
• High-efficiency linear power supplies

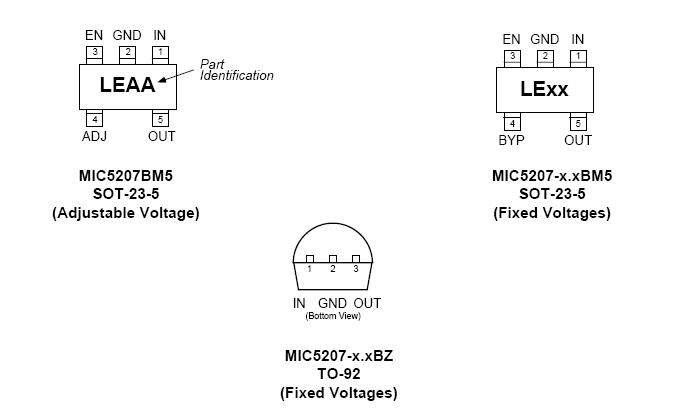

MIC5207 Connection Diagram
MIC5207-1.8BM5
PDF/DataSheet Download
- Datasheet: MIC5207-1.8BM5
- File Size: 80802 KB
- Manufacturer: MICREL [Micrel Semiconductor]
- Click here to Download
