Part Number: MIC5264









Description: The MIC5264 is a dual 150mA LDO in tiny 2.5mm x 2.5mm MLF(TM) packaging ideal for applications where c...


Urgent Purchase

MIC5264 General Description


The MIC5264 is a dual 150mA LDO in tiny 2.5mm x  2.5mm MLF(TM) packaging ideal for applications where cost is the priority. The MIC5264 is ideal for any application in portable electronics, including both RF and Digital applications.With low output noise and high PSRR, the MIC5264 is ideal for noise sensitive RF applications. While the fast transient response and active shutdown circuitry makes it well-suited for powering digital circuitry.

The MIC5264 has a 2.7V to 5.5V input operating voltage range, making it ideal for operation from a single cell lithium ion battery or fixed 3.3V and 5V systems. Each LDO is completely independent and can be powered independently,making it easier to use in distributed power applications.

The MIC5264 offers low dropout voltage (210mV at 150mA), low output noise (57Vrms), high PSRR and integrates an active shutdown circuit on the output of each regulator to discharge the output voltage when disabled.

Data sheets and supporting documentation can be found on Micrel's web site at:www.micrel.com

MIC5264 Maximum Ratings

Supply Input Voltage (VIN1/IN2)..............................0V to +7V
Enable Input Voltage (VIN1/IN2)................... .........0V to +7V
Power Dissipation (PD)..........................Internally Limited(3)
Junction Temperature (TJ)...........................-40°C to 125°C
Lead Temperature (soldering, #sec.)..........-55°C to 150°C
Storage Temperature (Ts)................................. .........260°C
EDS Rating(4)   .................................................................2kV


MIC5264 Features

*  2.7V to 5.5V supply voltage.
*  Low 75A quiescent current per LDO.
*  Tiny 2.5mm x 2.5mm MLF(TM) package.
*  Low Noise 57Vrms.
*  High PSRR 60dB at 1kHz.
*  Low dropout voltage 210mV at 150mA.
*  Stable with ceramic output capacitors.
*  Independent enable pins.
*  Fast transient response.
*  Active shutdown on both outputs.

MIC5264 Typical Application

* Cellular Telephones
* PDAs
* GPS Receivers

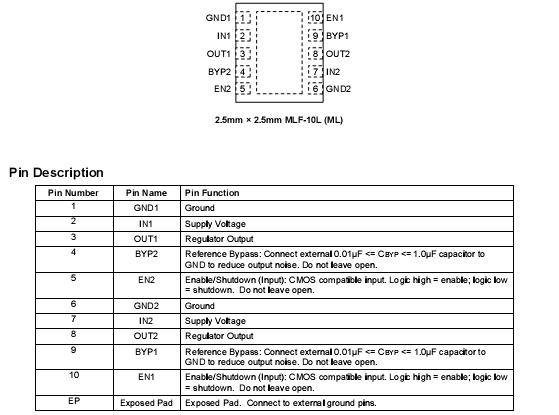

MIC5264 Connection Diagram

MIC5264 Connection Diagram

MIC5264 datasheet

MIC5264-2.8
PDF/DataSheet Download
