Part Number: MIC94030
Description: The MIC94030 and MIC94031 are 4-terminal silicon gate P-channel MOSFETs that provide low on-resistance in a verysma...
- Table of contents:
MIC94030
-
Suppliers
DataSheet
General Description
MIC94030 General Description
The MIC94030 and MIC94031 are 4-terminal silicon gate P-channel MOSFETs that provide low on-resistance in a very
small package.
Designed for high-side switch applications where space is critical, the MIC94030/1 exhibits an on-resistance of typically 0.75W at 4.5V gate-to-source voltage.The MIC94030/1 also operates with only 2.7V gate-to-source voltage.
The MIC94030 is the basic 4-lead P-channel MOSFET. The MIC94031 is a variation that includes an internal gate pull-up resistor that can reduce the system parts count in many applications.
MIC94030 Maximum Ratings
Voltage and current values are negative. Signs not shown for clarity.
Drain-to-Source Voltage (pulse) ....................................................16V
Gate-to-Source Voltage (pulse) .....................................................16V
Continuous Drain Current
TA = 25°C .................................................................................1A
TA = 100°C ............................................................................ 0.5A
Operating Junction Temperature ............................... 55°C to +150°
Storage Temperature ............................................ 55°C to +150°C
Total Power Dissipation
TA = 25°C ...........................................................................568mW
TA = 100°C ..........................................................................227mW
Thermal Resistance
qJA .................................................................................... 220°C/W
qJC .................................................................................... 130°C/W
Lead Temperature
1/16" from case, 10s ........................................................... +300°C
Drain-to-Source Voltage (pulse) ....................................................16V
Gate-to-Source Voltage (pulse) .....................................................16V
Continuous Drain Current
TA = 25°C .................................................................................1A
TA = 100°C ............................................................................ 0.5A
Operating Junction Temperature ............................... 55°C to +150°
Storage Temperature ............................................ 55°C to +150°C
Total Power Dissipation
TA = 25°C ...........................................................................568mW
TA = 100°C ..........................................................................227mW
Thermal Resistance
qJA .................................................................................... 220°C/W
qJC .................................................................................... 130°C/W
Lead Temperature
1/16" from case, 10s ........................................................... +300°C
MIC94030 Features
• 13.5V minimum drain-to-source breakdown
• 0.75W typical on-resistance at 4.5V gate-to-source voltage
• 0.45W typical on-resistance at 10V gate-to-source voltage
• Operates with 2.7V gate-to-source voltage
• Separate substrate connection for added control
• Industry's smallest surface mount package
• 0.75W typical on-resistance at 4.5V gate-to-source voltage
• 0.45W typical on-resistance at 10V gate-to-source voltage
• Operates with 2.7V gate-to-source voltage
• Separate substrate connection for added control
• Industry's smallest surface mount package
MIC94030 Typical Application
• Distributed power management
• PCMCIA card power management
• Battery-powered computers, peripherals
• Hand-held bar-code scanners
• Portable communications equipment
• PCMCIA card power management
• Battery-powered computers, peripherals
• Hand-held bar-code scanners
• Portable communications equipment

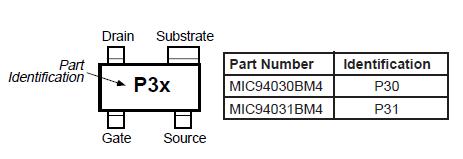

MIC94030 Connection Diagram
MIC94030BM4
