MJ4035 General Description


The MJ4035 is silicon epitaxial-base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-3 metal case.

It is inteded for use in general purpose and amplifier applications.

The complementary PNP type is the MJ4032.

MJ4035 Maximum Ratings

Symbol
Conditions

Value
Unit
PNP
MJ4032
NPN
MJ4035
VCBO
 Collector-Base Voltage (IE = 0)
100
V
VCEO
 Collector-Emitter Voltage (IB = 0)
100
V
VEBO
 Emitter-Base Voltage (IC = 0)
5
V
IC
 Collector Current
16
A
IB
 Base Current
0.5
A
Ptot
 Total Dissipation at Tc £ 25
150
W
Tstg
 Storage Temperature
-65 to 200
TJ
 Max. Operating Junction Temperature
200

For PNP types voltage and current values are negative.

MJ4035 Features

·SGS-THOMSON PREFERRED SALESTYPES
·COMPLEMENTARY PNP - NPN DEVICES
·MONOLITHIC DARLINGTON CONFIGURATION
·INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE

MJ4035 Typical Application

·GENERAL PURPOSE SWITCHING
·GENERAL PURPOSE AMPLIFIERS

MJ4035 datasheet

MJ4035
PDF/DataSheet Download

  • Datasheet: MJ4035
  • File Size: 128297 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download

Find MJ4035 Suppliers

  • ·MJ400
  • SEME-LAB [Seme LAB]
  • Bipolar NPN Device
  • 11367 KB
  • MJ400 Datasheet Download
  • ·MJ4030
  • CENTRAL [Central Semiconductor Corp]
  • Power Transistors
  • 128297 KB
  • MJ4030 Datasheet Download
  • ·MJ4031
  • CENTRAL [Central Semiconductor Corp]
  • Power Transistors
  • 128297 KB
  • MJ4031 Datasheet Download
  • ·MJ4032
  • STMICROELECTRONICS [STMicroelectronics]
  • COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
  • 71432 KB
  • MJ4032 Datasheet Download
  • ·MJ4033
  • CENTRAL [Central Semiconductor Corp]
  • Power Transistors
  • 128297 KB
  • MJ4033 Datasheet Download
  • ·MJ4034
  • CENTRAL [Central Semiconductor Corp]
  • Power Transistors
  • 128297 KB
  • MJ4034 Datasheet Download
  • ·MJ410
  • MOTOROLA [Motorola, Inc]
  • 5 AMPERE POWER TRANSISTOR NPN SILICON
  • 143197 KB
  • MJ410 Datasheet Download
  • ·MJ411
  • SEME-LAB [Seme LAB]
  • Bipolar NPN Device
  • 11568 KB
  • MJ411 Datasheet Download

Related Part Number

MJ4035 Relative Products

  • MJ4034

    MJ4034

    The MJ4034 features are as follows:·With TO-3 package·Respectively complement to type MJ4030/4031/4032·DARLINGTON·High DC current gain

  • MJ4033

    MJ4033

    The MJ4033 features are as follows:·With TO-3 package·Respectively complement to type MJ4030/4031/4032·DARLINGTON·High DC current gain

  • MJ4032

    MJ4032

    The MJ4035 is silicon epitaxial-base NPN power transistor in monolithic Darlington configuration mounted in Jedec TO-3 metal case.MJ4032 is inteded for use in general purpose and amplifier applications.The complementary PNP type is the MJ4032.

  • MJ-3536NG

    MJ-3536NG

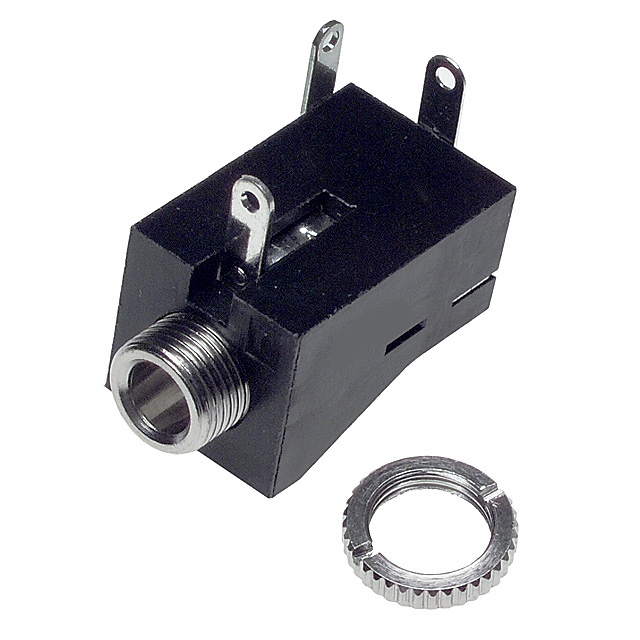

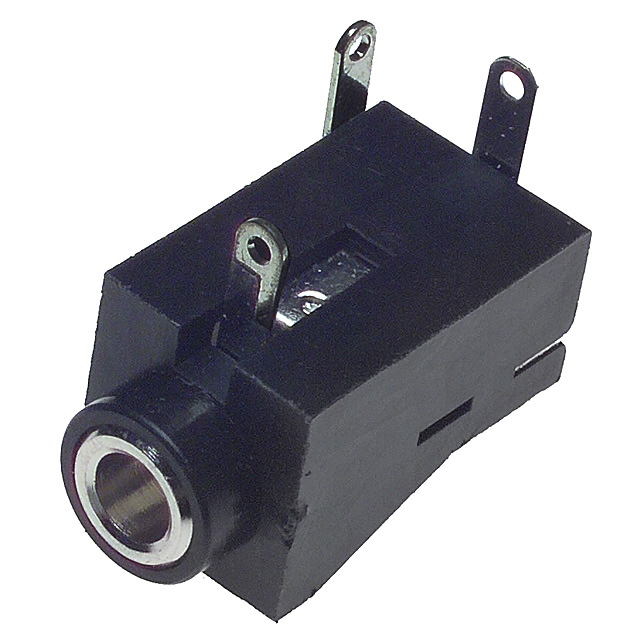

    CONN AUDIO JACK 3.5MM MONO

  • MJ-3536N

    MJ-3536N

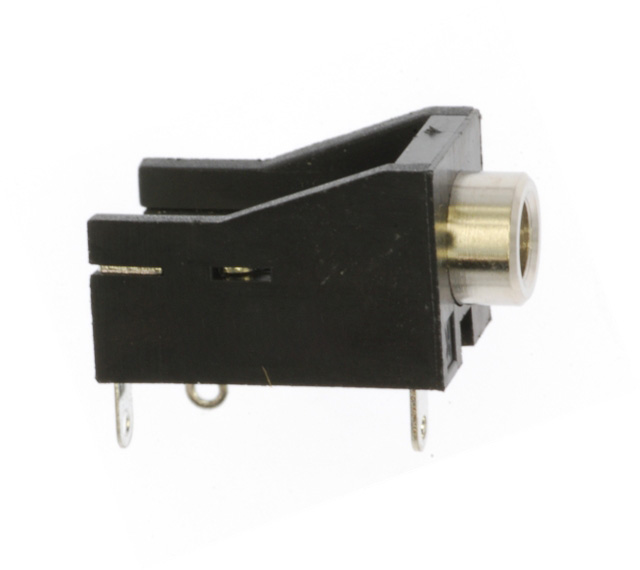

    CONN AUDIO JACK 3.5MM MONO
