Purchase MJB45H11T4, In-stock MJB45H11T4 From SeekIC.

MFG:ON Semiconductor  Category:Discrete Semiconductor Products

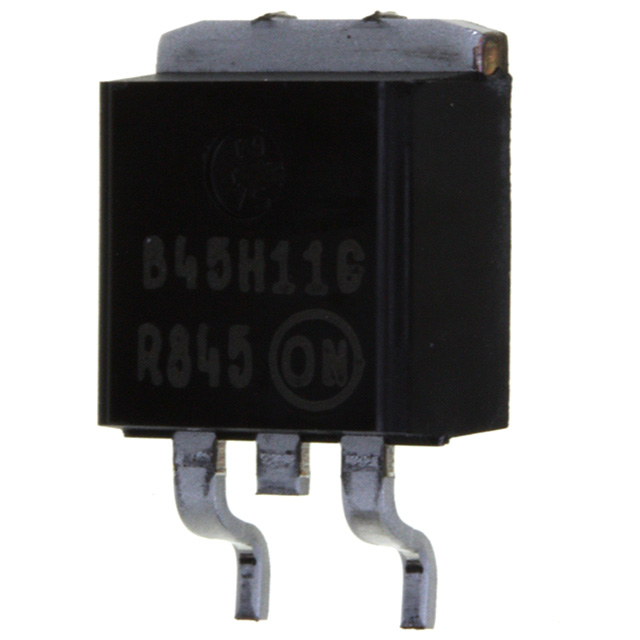

MJB45H11T4 Product Image

MJB Series Datasheet download

Five Points

Part Number: MJB45H11T4

Category: Discrete Semiconductor Products

MFG: ON Semiconductor





Descriptions: TRANS PWR PNP 10A 80V D2PAK-3

Price Break

800

Unit Price

.60800

Extended Price

486.40

(All prices are in USD) Prices for reference only
Urgent Purchase

MJB45H11T4 General Description

TRANS PWR PNP 10A 80V D2PAK-3

MJB45H11T4 Parameters

Technical/Catalog InformationMJB45H11T4
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Transistor TypePNP
Voltage - Collector Emitter Breakdown (Max)80V
Current - Collector (Ic) (Max)10A
Power - Max50W
DC Current Gain (hFE) (Min) @ Ic, Vce60 @ 2A, 1V
Vce Saturation (Max) @ Ib, Ic1V @ 400mA, 8A
Frequency - Transition40MHz
Current - Collector Cutoff (Max)10A
Mounting TypeSurface Mount
Package / CaseD²Pak, SMD-220, TO-263 (2 leads + tab)
PackagingTape & Reel (TR)
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MJB45H11T4
