MK1443

Features: • Provides exact frequency Ethernet and SCSI clocks• 5V or 3.3V (up to 80MHz) operation• Output clock frequencies up to 100 MHz• Pentium™ Processor compatible timing• 486 compatible smooth frequency transitions• Seven or eight output clocks•...

product image

MK1443 Picture
See larger image
SeekIC No. : 004421651 Detail

MK1443: Features: • Provides exact frequency Ethernet and SCSI clocks• 5V or 3.3V (up to 80MHz) operation• Output clock frequencies up to 100 MHz• Pentium™ Processor compatible...

MK1443 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MK1443
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Provides exact frequency Ethernet and SCSI clocks
• 5V or 3.3V (up to 80MHz) operation
• Output clock frequencies up to 100 MHz
• Pentium™ Processor compatible timing
• 486 compatible smooth frequency transitions
• Seven or eight output clocks
• Compatible with X86 and 680X0 CPUs
• Skew controlled 2X and 1X CPU to within 250ps
• Packaged in 16 pin skinny SOIC or PDIP
• Duty cycle of 47.5/52.5 up to 66.66 MHz
• Duty cycle of 45/55 up to 100 MHz
• Total of 15 different selectable CPU frequencies
• Tri-state outputs for board level testing
• 25mA drive capability at TTL levels
• Keyboard frequencies of 12MHz (-01), 8MHz (-02), or 16MHz (-03)
• Advanced, low power CMOS process
• MK1442 - output enable
• MK1443 - two 14.318 MHz outputs


Pinout

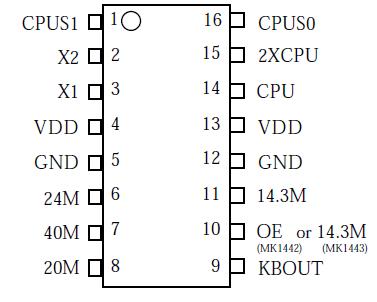

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Clock Outputs Referenced to GND
-0.5
VDD+.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 20 seconds
260
Storage temperature
-65
150



Description

The MK1442/3 are the ideal way to generate clocks for desktop computer motherboards and LAN workstations. Using analog Phase-Locked Loop (PLL) techniques, MK1443 accept a 14.318 MHz crystal input to produce multiple output clocks up to 100 MHz. They provide 2XCPU, CPU, floppy controller, keyboard, system, SCSI and Ethernet clocks. The MK1442/3 are perfect for new Pentium™ Processor, PCI bus and 486 systems. The devices can operate at 5V or 3.3V up to and including 80MHz on the CPU clock.

MK1443 are identical except the MK1442 has an Output Enable (OE) pin that tri-states all outputs when taken low, and the MK1443 has an extra 14.318 MHz clock.
