Part Number: MK2011
Description: The MK2011 is the ideal way to generate clocks for Fast Ethernet cards or systems. It provides 20MHz, ...
- Table of contents:
MK2011
-
Suppliers
DataSheet
General Description
MK2011 General Description
The MK2011 is the ideal way to generate clocks for Fast Ethernet cards or systems. It provides 20MHz, 25MHz, and 50MHz clocks. In an 8 pin SOIC, the MK2011 can save component count, board space, and cost over surface mount crystals and oscillators, and increase reliability by eliminating two or three mechanical devices from the board.
MicroClock offers many other clocks for computers and computer peripherals. Consult MicroClock when you need to remove crystals and oscillators from your board.
MK2011 Maximum Ratings
|
Parameter |
Conditions |
Minimum |
Typical |
Maximum |
Units |
| Supply Voltage, VDD | Referenced to GND |
7 |
V | ||
| Inputs | Referenced to GND |
-0.5 |
VDD+.5V |
V | |
| Clock Outputs | Referenced to GND |
-0.5 |
VDD+.5V |
V | |
| Ambient Operating Temperature |
0 |
70 |
|||
| Soldering Temperature | Max of 20 seconds |
260 |
|||
| Storage temperature |
-65 |
150 |
MK2011 Features
• Packaged in 8 pin SOIC
• Input crystal or clock frequency of 20.00 MHz
• Lowest jitter in the industry reliably clocks sensitive Ethernet devices.
• Output clock frequencies of 20.00 MHz, 25.00 MHz, and 50.00 MHz
• 25mA drive capability at TTL levels
• 3.3V or 5V±10% supply voltage
• Advanced, low power CMOS process
• Insensitive to input clock duty cycle
• Input crystal or clock frequency of 20.00 MHz
• Lowest jitter in the industry reliably clocks sensitive Ethernet devices.
• Output clock frequencies of 20.00 MHz, 25.00 MHz, and 50.00 MHz
• 25mA drive capability at TTL levels
• 3.3V or 5V±10% supply voltage
• Advanced, low power CMOS process
• Insensitive to input clock duty cycle

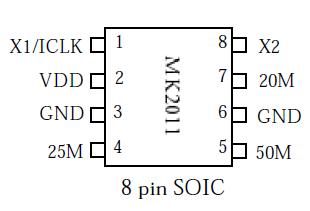

MK2011 Connection Diagram
MK2011
