General Description
MK2049-35 General Description
The MK2049-35 is a Phase-Locked Loop (PLL) based clock synthesizer that accepts multiple input frequencies. With an 8 kHz clock input as a reference, the MK2049-35 generates T1, E1, T3, E3, OC3/3, Gigabit Ethernet, and other communications frequencies. This allows for the generation of clocks frequency-locked to an 8 kHz backplane clock, simplifying clock synchronization in communications systems.
This part also has a jitter-attenuated Buffer capability. In this mode, the MK2049-35 is ideal for filtering jitter from with high jitter clocks.
ICS/MicroClock can customize these devices for many other different frequencies. Contact your ICS/MicroClock representative for more details.
MK2049-35 Maximum Ratings
|
Parameter |
Conditions |
Minimum |
Typical |
Maximum |
Units |
| Supply Voltage, VDD | Referenced to GND |
7 |
V | ||
| Inputs and Clock Outputs |
-0.5 |
VDD+0.5V |
V | ||
| Ambient Operating Temperature | MK2049-34SI |
-40 |
85 |
||
| Soldering Temperature | Max of 10 seconds |
250 |
|||
| Storage temperature |
-65 |
150 |
MK2049-35 Features
• Packaged in 20 pin SOIC
• 3.3 V ±5% operation
• Meets the TR62411, ETS300 011, and GR-1244 specification for MTIE, Pull-in/Hold-in Range, Phase Transients, and Jitter Generation for Stratum 3, 4, and 4E
• Accepts multiple inputs: 8 kHz backplane clock, or 10 to 50 MHz
• Locks to 8 kHz ±100 ppm (External mode)
• Buffer Mode allows jitter attenuation of 10-50 MHz input and x1/x0.5 or x1/x2 outputs
• Exact internal ratios enable zero ppm error
• Output clock rates include T1, E1, T3, E3, and OC3 submultiples
• See the MK2049-01, -02, and -03 for more selections at VDD = 5 V, and the MK2049-34 for more selections at 3.3 V
• 3.3 V ±5% operation
• Meets the TR62411, ETS300 011, and GR-1244 specification for MTIE, Pull-in/Hold-in Range, Phase Transients, and Jitter Generation for Stratum 3, 4, and 4E
• Accepts multiple inputs: 8 kHz backplane clock, or 10 to 50 MHz
• Locks to 8 kHz ±100 ppm (External mode)
• Buffer Mode allows jitter attenuation of 10-50 MHz input and x1/x0.5 or x1/x2 outputs
• Exact internal ratios enable zero ppm error
• Output clock rates include T1, E1, T3, E3, and OC3 submultiples
• See the MK2049-01, -02, and -03 for more selections at VDD = 5 V, and the MK2049-34 for more selections at 3.3 V

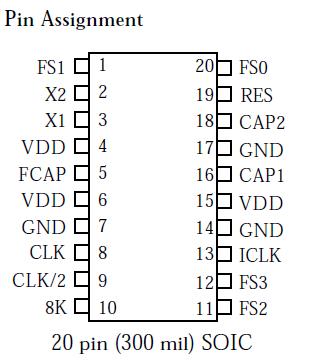

MK2049-35 Connection Diagram
MK2049-35
PDF/DataSheet Download
- Datasheet: MK2049-35
