Product Details

Description



Features:

• Packaged in 8 pin SOIC
• 3.3 V operating voltage
• 16.2 MHz to 28 MHz operation
• Uses an inexpensive external crystal
• On-chip VCXO (patented) with pull range of 200 ppm (minimum)
• VCXO tuning voltage of 0 to 3.3 V
• 12 mA output drive capability at TTL levels
• Advanced, low power, sub-micron CMOS process
• For frequencies between 8 MHz to 16 MHz, use the MK3711A. For frequencies between 1 MHz and 8 MHz, use the MK3713. For higher than 28 MHz, use the MK3732-05


Pinout

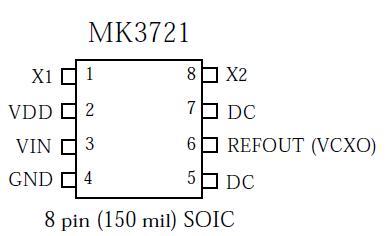

Connection Diagram


Specifications

Parameter
Conditions
Minimum
Typical
Maximum
Units
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
-0.5
VDD+0.5V
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150



Description

The MK3721 is ICS/MicroClock's lowest cost, low jitter, high performance 3.3 volt VCXO designed to replace expensive VCXO modules. The on-chip Voltage Controlled Crystal Oscillator accepts a 0 to 3.3 V input voltage to cause the output clocks to vary by ±100 ppm. Using ICS/MicroClock's patented VCXO techniques, the MK3721 uses an inexpensive external pullable crystal in the range of 16.2 - 28 MHz to produce a VCXO output clock at that same frequency.

ICS/MicroClock of MK3721 manufactures the largest variety of Set-Top Box and multimedia clock synthesizers for all applications. If more clock outputs are needed, see the MK3732 or MK377x family of parts. Consult ICS/MicroClock to eliminate VCXOs, crystals and oscillators from your board.
